Tiffin Motorhomes Bob Tiffin Limited Edition Bus Motor Home Class A - Diesel RVs For Sale

Previous
Next
1 of 21

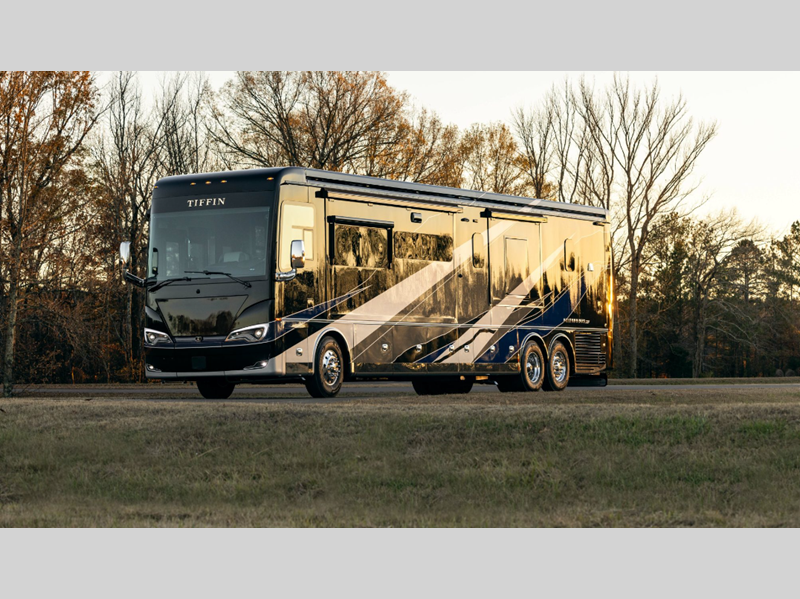

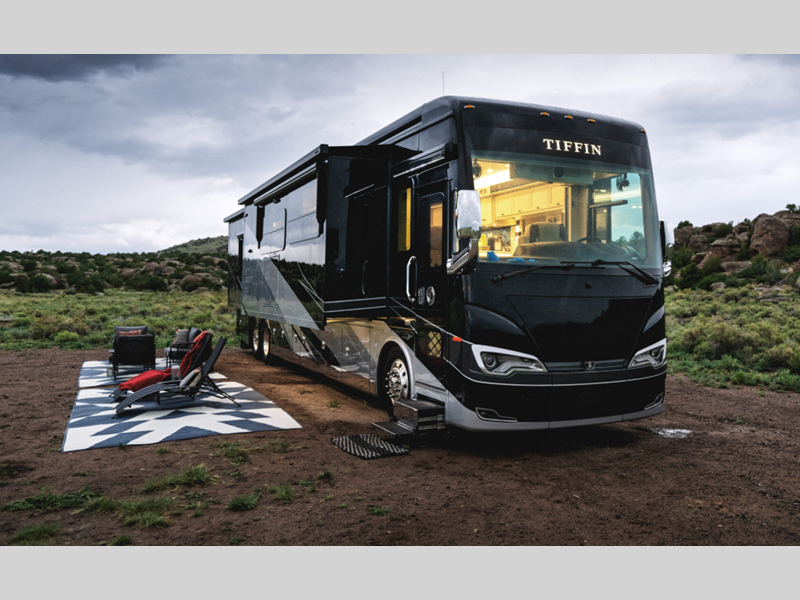

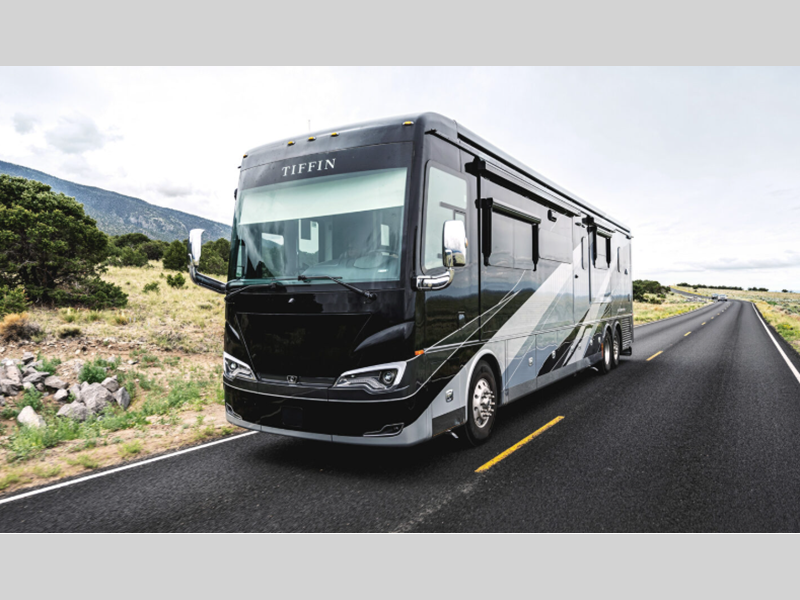

The Bob Tiffin Limited Edition Bus honors the outstanding legacy of Tiffin Motorhomes' founder, Bob Tiffin. With 51 years and counting in the motorhome industry, it's only fitting to dedicate a Class A diesel coach in his name!

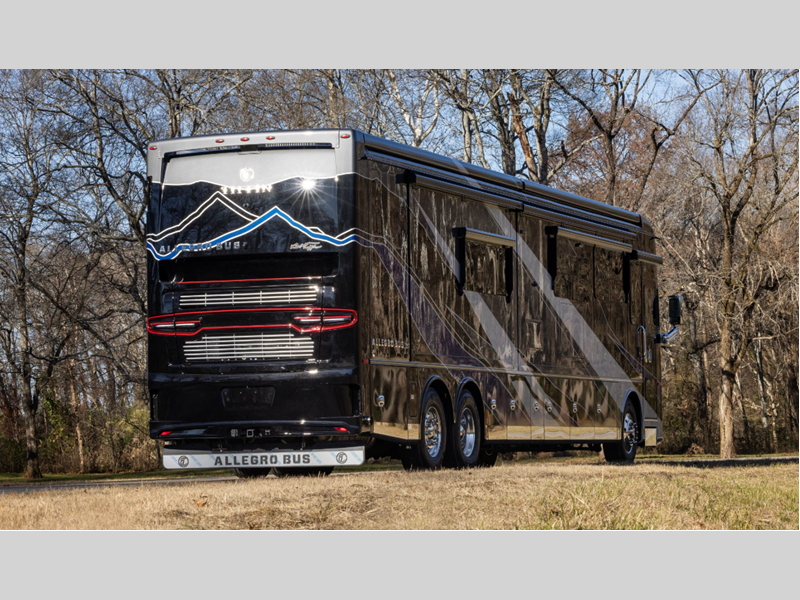

You will love the exterior paint scenes that portrays the Rocky Mountains and the slide facia that is similar to the grill of a Packard, which is Bob's favorite car. The Cummins L9 450 HP diesel engine will power your trips across the states and the PowerGlide raised rail rear chassis provides a strong foundation and smooth ride. There is 257 cu. ft. of storage capacity so nothing gets left behind, and you are sure to appreciate the 10.0 kW Onan quiet diesel generator.



Enjoy the culture and legacy of Tiffin Motorhomes with the Class A diesel Bob Tiffin Limited Edition Bus!

  • Bob Tiffin Limited Edition Bus 45 BTP

    Bob Tiffin Limited Edition Bus 45 BTP Floorplan Image

    Take a Virtual Tour

    Tiffin Motorhomes Bob Tiffin Limited Edition Bus Class A diesel motorhome 45 BTP ... more about Bob Tiffin Limited Edition Bus 45 BTP

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 45 ft
    Ext Width 8 ft 5 in
    Ext Height 13 ft 3 in
    Int Height 6 ft 11 in
    Interior Color Great Smoky Moutains

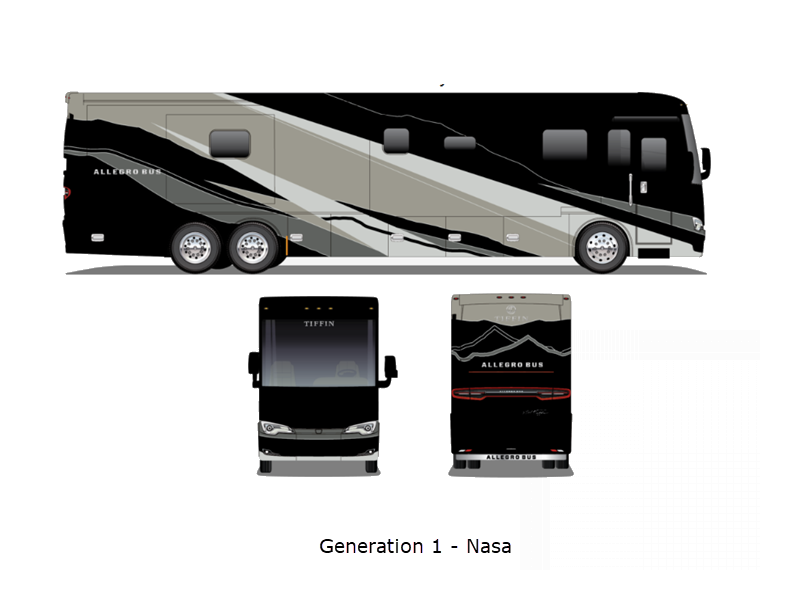

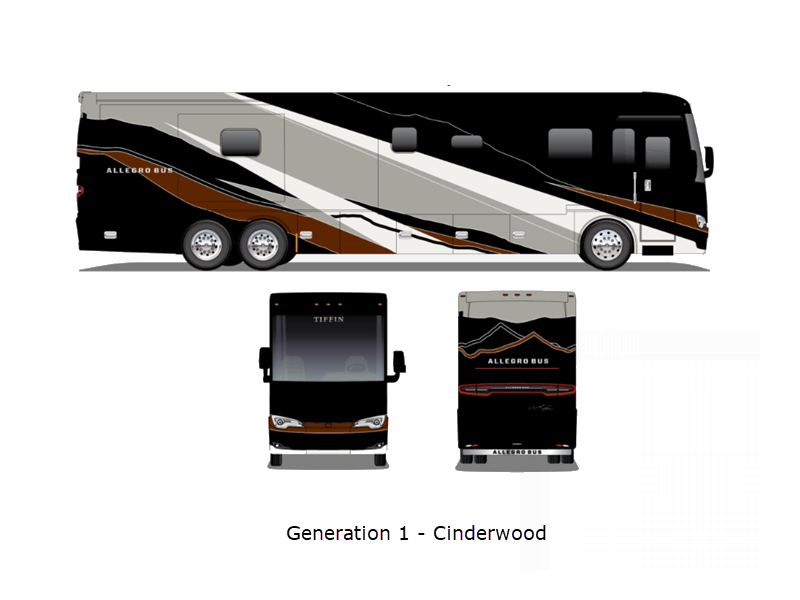

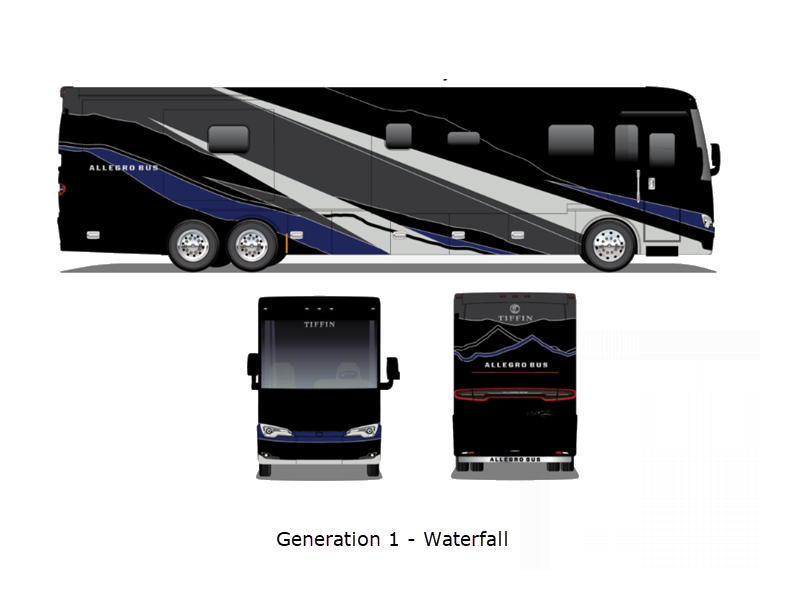

    Exterior Color Generation 1, Generation 1; Nasa, Cinderwood, Waterfall
    Hitch Weight 15000 lbs
    GVWR 52000 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 100 gals
    Black Water Capacity 55 gals
    Tire Size 315/80R 22.5
    Generator 10.0 kW Onan Quiet
    Fuel Type Diesel
    Engine Cummins L9
    Chassis PowerGlide Raised Rail Rear
    Horsepower 450 hp
    Fuel Capacity 150 gals
    Wheelbase 323 in
    Available Beds Power Smart King
    Torque 1250 ft-lb
    Refrigerator Type Stainless Steel Residential with French Doors and Bottom Freezer
    Refrigerator Size 25 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 32" x 48"
    Number of Awnings 2
    Axle Weight Front 18000 lbs
    Axle Weight Rear 23000 lbs
    Water Heater Type Aqua Hot
    AC BTU 45000 btu
    Basement Storage 257 cu. ft.
    TV Info LR Lift TV, BR 50" TV, Ext. TV
    Awning Info Girard Roof Mounted Powered with Integrated LED Lighting and Dual Pitch Feature
    Washer/Dryer Available Yes
    Gross Combined Weight 67000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Bob Tiffin Limited Edition Bus Features:

Standard Features (2024)



Chassis and Drivetrain

  • PowerGlide® Raised Rail Rear Engine Diesel Chassis
  • Two-wheel Drive
  • Aluminum Wheels
  • Front and Rear 315/80R 22.5 Tires
  • Combination Valid™ Air Leveling System with Hydraulic Leveling Jacks
  • Integrated Leveling Controls Through Valid™ Instrument Cluster
  • ZF Independent Front Suspension
  • Front Sway Bar
  • Reyco® Granning® Air Ride Rear Suspension
  • Custom Tuned Koni Shock Absorbers
  • Side-mounted Radiator
  • Front Disc Brakes with Rear Drum Brakes
  • Full Air Brake System with Automatic Slack Adjusters
  • Three-stage Compression Brake
  • Manual Parking Brake
  • Air Force One Tow Vehicle Brake System
  • Driver and Passenger Side Fuel Fill
  • Tire Pressure Monitoring
  • Adaptive Cruise Control
  • Automatic Traction Control
  • Collision Mitigation with Forward Warning and Active Braking
  • Electronic Stability Control

Engine Options

  • Cummins® L9 450 HP Diesel Engine with 1,250 lb-ft Torque
  • Alternator
  • 210-Amp Alternator
  • Transmission
  • Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter
  • Chassis Batteries
  • (2) 12-Volt Flooded Lead-Acid Chassis Batteries
  • Steerable Tag Axle
  • Service Brakes
  • Tag Axle Drum Brakes

Construction

  • Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
  • 5 1/4" Formed Roof Insulation
  • Tubular Aluminum Roof Skeleton Frames
  • Extraordinaire™ Ducted Air Cooling System
  • One-piece Molded Gel-coat Fiberglass Front and Rear Caps
  • Steel Cockpit Overhead Support Frame
  • Crane® Composites Noble® Select All-Composite Exterior Sidewalls
  • Tubular Aluminum Wall Skeleton Frames
  • High-performance Thermal Insulation in Sidewalls
  • Engineered Wood Sub-flooring
  • Laminated Elevated Sub-Flooring with 2 3/4" Thick Thermal Insulation
  • Steel Basement Construction
  • Rust Protective Undercoating
  • Hydraulic Slide-out Mechanisms
  • Extra Storage Chassis Construction

Electrical

  • Hydronic Heating & Electronic Appliance Equipped Coach
  • Spyder Controls Multiplex System
  • Firefly Integrations Eclipse Module
  • Centralized 10” Spyder System Main Monitor
  • Passenger Console Spyder System Color Touchscreen
  • Interior Entryway Spyder System Color Touchscreen
  • Exterior Spyder System Color Touchscreen
  • Additional Spyder Color Touchscreens Throughout Coach
  • 10.0-Kilowatt Onan® Quiet Diesel Generator
  • Generator Slide Tray
  • 2,800-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control (3)15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation Drains
  • Aqua-Hot® 450D Heat Exchanger
  • 50-Amp Shore Power with Powered Retract Reel
  • Prep for Solar Panels
  • Auxiliary Solar Port
  • Energy Management System
  • HD Over-the-air Antenna
  • Park Cable and Ground Satellite Hook-up
  • In-motion Satellite Dish
  • Blu-ray™ Player
  • Prewiring for Winegard® Trav’ler™ Satellite
  • Satellite Receiver
  • 12-Volt Breaker Panel
  • 12-Volt Disconnect Switch
  • Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter
  • Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
  • 110-Volt Exterior Receptacle
  • Surge Guard® Transfer Switch
  • USB Receptacles Throughout Coach
  • House Batteries
  • (6) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries
  • (6) 6-Volt, 300-Amp Hours Extended Cycle AGM House Batteries (Optional)
  • (3) 12-Volt, 270-Amp Hours Lithium House Batteries (Optional)
  • Battery Slide-out Tray (DEP)
  • Solar Panels
  • (3) 200-Watt Solar Panels with (1) 30-Amp Controller (Optional)
  • (6) 200-Watt Solar Panels with (2) 30-Amp Controllers (Optional)
  • Internet & Phone
  • Wi-Fi Booster (Optional)
  • Starlink® Pro

Plumbing

  • Aqua-Hot® 450D Heat Exchanger 2
  • Aqua View Showermiser™
  • Water Filter
  • Water Pump Switch Access from Spyder System and Sewer Bay Board
  • Low-point Water Drain Lines
  • Black Holding Tank Flush System
  • Gravity Water Fill
  • Heated Fresh and Holding Tank Compartment via Heat Duct
  • SeeLeveL™ Tank Monitor
  • Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
  • Exterior Rinse Hose with Shower Head
  • Sewer Bay Hand Sanitizer and Paper Towel Holders
  • Fresh Water Hose with Power Retract Reel
  • Sewer Hose Storage

Exterior

  • Full-body Paint with (4) Layers of Clear Coat
  • Striped Slide-out Endwalls
  • High Performance Protective Film on Front Cap and Select Areas
  • Girard® Powered Door Awning with Integrated LED Lighting
  • Girard® Slide-out Toppers
  • Side-swinging Exterior Storage Doors with Gas Shocks
  • Lockable Handles on Compartment Doors
  • Motion-sensor Lights in Cargo Bay
  • 120-Volt and 12-Volt Outlets Inside Cargo Bays
  • Pass-through Basement Storage
  • Charcoal Carpet Cargo Walls
  • Fiberglass Reinforced Plastic Basement Floor
  • Frameless, Dual-Pane Windows
  • Exterior Patio Light
  • Fog Lights
  • Daytime Running Lights
  • Docking Lights
  • Exterior Ground Effects Lighting
  • Chrome Power Heated Side-View Mirrors with Integrated Cameras
  • Exterior TV with Soundbar
  • Fast Charge USB ports within Exterior TV Compartment
  • Lightweight Entry Door with Integrated Screen
  • Deadbolt Front Entrance Lock
  • Lighted Entry Door Grab Handle
  • Automatic Stainless Steel Double Entry Step
  • Keyless Entry System for Front Entrance and Component Doors
  • Mud Flaps
  • Custom Rock Guard
  • Patio Awnings
  • (2) Girard® Roof-mounted Powered Patio Awnings with Integrated LED Lighting and Dual Pitch Feature
  • Window Awnings
  • Girard® Powered Window Awning Package
  • Cargo Door Stainless Steel Rocker Trim
  • Slide Trays
  • (1) Powered Storage Compartment Slide-out Tray (Optional)
  • (2) Powered Storage Compartment Slide-out Trays (Optional)

Exterior Add On Options

  • Outdoor Electric Grill (Optional)
  • Basement Freezer
  • Exterior Lighting under Slide-out
  • Lippert™ On-The-Go™ Telescoping Ladder

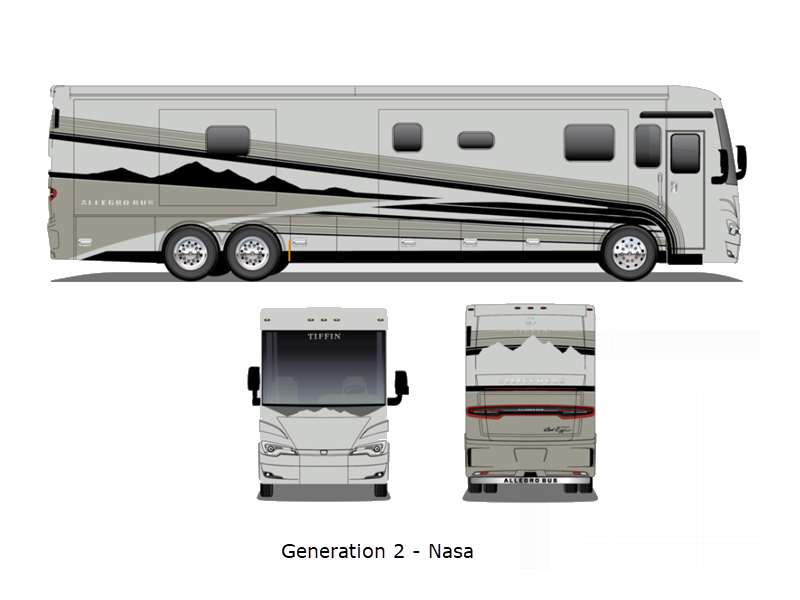

  • Exterior Color Package Options

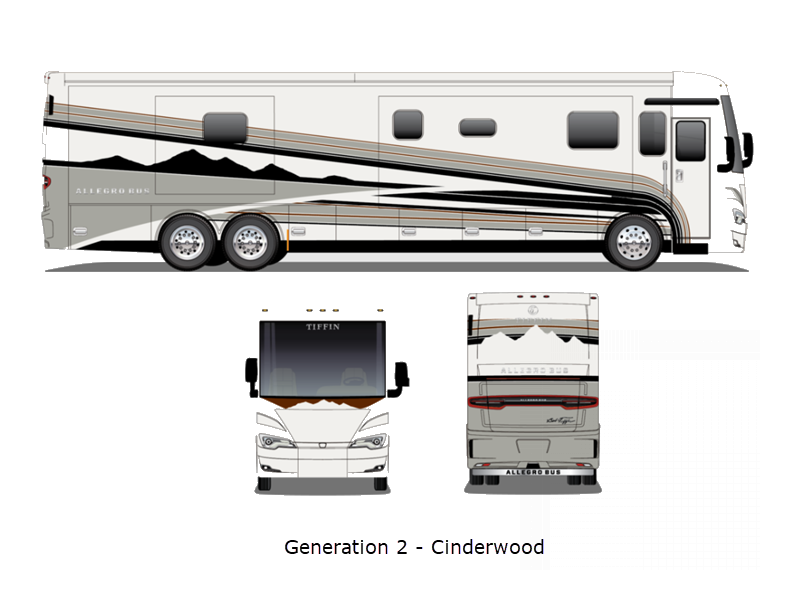

  • Cinderwood (Optional)
  • Nasa (Optional)
  • Waterfall (Optional)

Interior

  • Handcrafted Overhead Cabinetry
  • Solid Surface Step Well with Tile Inserts
  • Powered Step Well Cover
  • Storage Compartment Within Entry Steps
  • Recessed Step Well Lighting
  • Living Area TV
  • Solid Surface Galley Countertop
  • Handcrafted Slide-out Fascia
  • Soft Touch Vinyl Ceiling
  • Dimmable LED Lighting
  • Prep for Washer and Dryer
  • Carbon Monoxide Detector
  • LPG Leak Detector
  • Smoke Detectors
  • Fire Extinguisher
  • Powered Solar and Privacy Shades
  • Soft-closing Drawers
  • Powered Roof Vents
  • Central Vacuum System with VacPan® Automatic Dustpan
  • Interior Grab Handle at Entry Door
  • Egress Windows Throughout Coach

Interior Decor Packages

  • Great Smoky Packages

Upholstery Fabrics

  • Ultrafabrics Tottori Rice Paper

Cabinetry Color

  • White Linen (Optional)
  • Platinum (Optional)
  • Black Truffle (Optional)
  • Glazed Canyon Cherry (Optional)
  • Glazed Honey Natural Cherry (Optional)

Floor Tiles

  • Pierre/Wagon Glazed Porcelain Tile
  • Slide-Out Flooring
  • Tile Slide-Out Floors

Interior Add On Options

  • Stacked Washer and Dryer (Standard)
  • Gold Heat Dual Zones Heated Tile Floor (Standard)

Driver's Compartments

  • Ultrafabrics® Tottori Power Driver and Passenger Seats
  • Dual Driver And Passenger Seat Armrests
  • Swivel Bases for Driver and Passenger Seats
  • Powered Passenger Seat Footrest
  • Integrated Seat Belts on Driver and Passenger Seats
  • Lumbar Support on Driver and Passenger Seats
  • Tilt and Telescoping Steering Wheel with Integrated Controls
  • Adjustable Accelerator and Brake Pedals
  • Ergonomic Dash with Carbon Fiber Accents
  • Mounted Dash Fans
  • Cupholders on Driver and Passenger Side
  • Valid™ Liquid Crystal Display Instrument Cluster with Integrated Leveling Controls
  • (2) Center Storage Drawers
  • Generator Start & Stop Rocker Switch
  • USB Dash Receptacles
  • 12-Volt Dash Receptacle
  • Backlit Dash Rocker Switches
  • Passenger Console Wireless Phone Charger
  • 7" Passenger Console Advanced Monitor System Touchscreen
  • Driver Console Stationary Mount Phone Charger
  • Driver and Passenger Map Lights
  • One-piece Panoramic Windshield
  • Single-motor Intermittent Windshield Wipers
  • Automatic LED Headlights
  • Side-view Cameras
  • Color Back-up Camera
  • 10" Glass Panel Camera Monitor
  • Blind Spot Monitoring System
  • Advanced Monitor System featuring Media Center, Bluetooth®, and AM, FM, and Satellite Radio
  • Ceiling Mounted Speakers
  • JBL® Sound System
  • In-dash Navigation System via Advanced Monitor System's 10" Glass Panel Touchscreen
  • Overhead Cabinetry with Wooden Panel Doors
  • Auxiliary Start Switch
  • Concealed Air Horn
  • Powered Opening Driver Side Window
  • Solid, Non-opening Passenger Side Window
  • Powered Solar and Privacy Windshield Shade
  • Powered Solar and Privacy Shades on Side Windows

Driver's Compartment Add On Options

  • 360° View Camera
  • Front Overhead TV

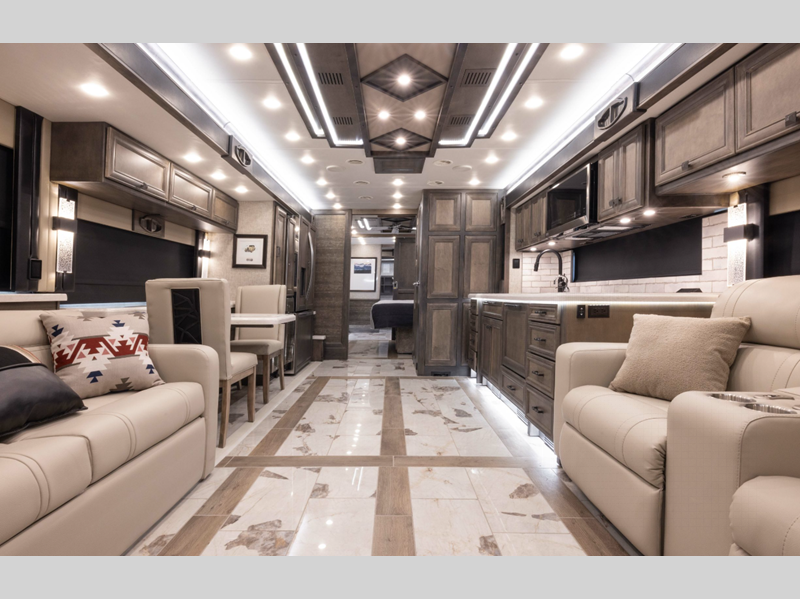

Dinette and Living Area

  • Driver Side Furniture
    • 83" Air Coil Sofa Bed (Standard)
    • 83" Theater Seating (Optional)
    • Ottoman with Internal Storage (DEP)
  • Passenger Side Dinette
    • 75" Dinette with Chairs (Standard)
    • 75" U-shaped Dinette (Optional)
  • Passenger Side Furniture
    • 70" DE Sofa Bed with Lift TV (Standard)
    • 70" Air Coil Sofa Bed with Lift TV (Optional)
    • Recliner and Lift TV with Fireplace

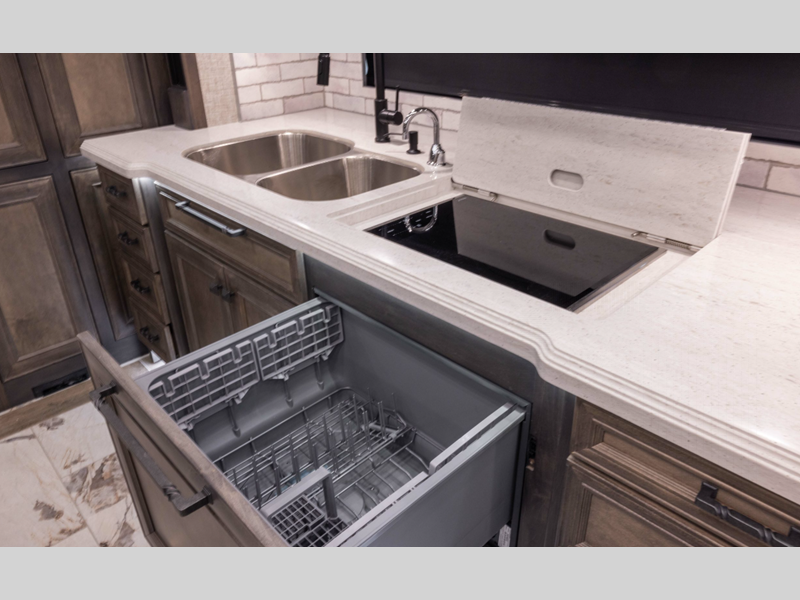

Kitchen

  • 1.7-Cubic Foot Smart Convection Microwave with Air Fry
  • Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer
  • Built-in Soap Dispenser
  • Galley Overhead Cabinets with Pull-out Drawers
  • Panoramic Galley Window
  • Task Lighting
  • Toe Kick Lighting
  • Under Counter LED Accent Lighting
  • Pantry Lighting
  • Full Tile Backsplash
  • Solid Surface Galley Countertop, Sink, and Cooktop Cover
  • Pull-out Utility Box Located Under Sink
  • Refrigerator
  • 25-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer
  • Decorative Wooden Refrigerator Panel (Optional)
  • Cooking Appliances
  • Two-Burner Induction Cooktop
  • Wolf® Induction Cooktop (Optional)

Kitchen Add On Options

  • InSinkErator® Instant Hot Water Faucet(Optional)
  • Drawer-style Dishwasher (Standard)
  • 12" Beverage Center (Optional)
  • Electronic Release Expand-An-Island (Standard)

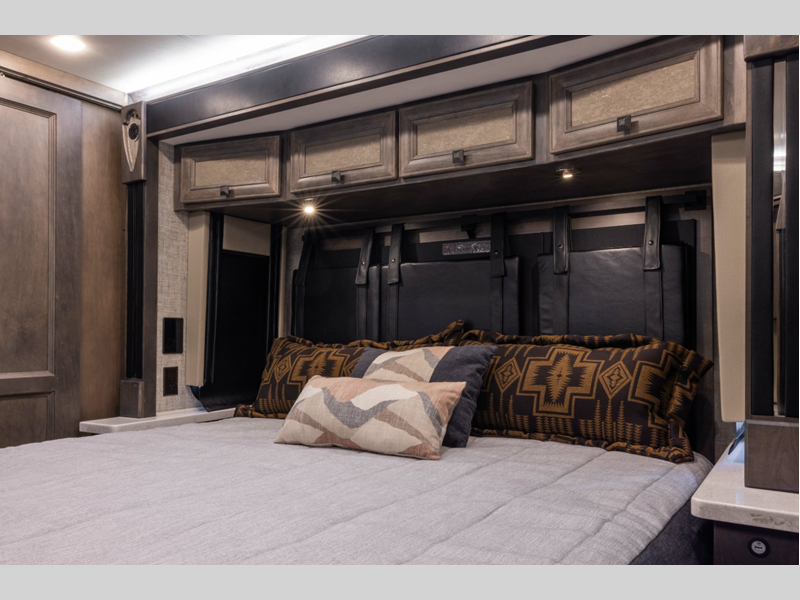

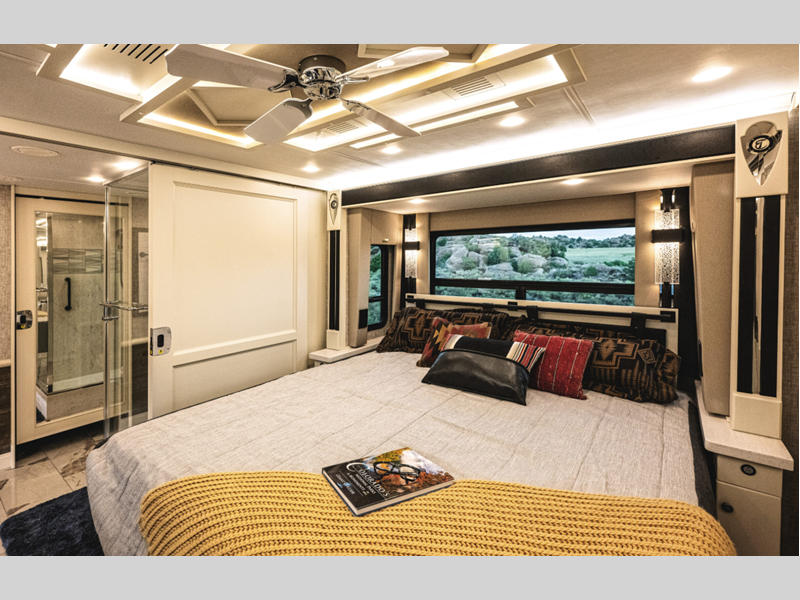

Bedroom

Under Bed Storage

  • Bedside Windows
  • Bed Comforter with Throw Pillows
  • Handcrafted Privacy Door
  • LED Reading Lights
  • Nightstand with Solid Surface Tops
  • Mounted Bedroom TV
  • Centralized Entertainment Center
  • Ceiling Fan
  • Decorative Handcrafted Wood Ceiling Ring
  • Safe
  • Mattress
  • Memory Foam King Mattress (72" x 80") with Power Smart Lift
  • Bed Slide
  • Overhead Cabinets with Headboard
  • Shoe Rack
  • Bedroom Storage
  • Walk-in Closet
  • Solid Surface Countertops within Storage Spaces

Bedroom Add On Options

  • Bedroom Fireplace (Optional)
  • Bedroom Egress Door DEP (Optional)

Bathroom

  • (2) Porcelain Master Bathroom Sinks
  • Solid Surface Lavatory Top
  • Teak Folding Shower Seat
  • Shower Head with Detachable Hand-held Shower Wand
  • Shower Skylight
  • Shower LED Light with Sliding Cover
  • Towel and Toilet Paper Holders
  • Medicine Cabinet with Tri-view Vanity Mirror
  • Roof Vent Fan
  • Base Cabinet
  • Number of Bathrooms
  • (1) Bathroom and (1) Half-bath
  • Shower
  • Solid Surface Shower Walls with Inlaid Tile and Residential Glass Door (32" x 48")
  • Toilet
  • (1) Electric Gravity Flush Toilet and (1) Macerator Toilet

Additional Add-On Options

  • Factory Delivery Program
  • Factory Delivery (Optional)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Tiffin Motorhomes Logo

Tiffin Motorhomes is proud to be one of the few family-owned manufacturers in the industry, and it makes a significant difference in how our company operates versus our competitors. For starters, with the Tiffin name on every coach, building a superior motorhome isn’t just our occupation. It’s a matter of personal pride, a pursuit we have committed our lives to perfecting.
