Dynamax Isata 5 Motor Home Super C - Diesel RVs For Sale

Previous
Next
1 of 33

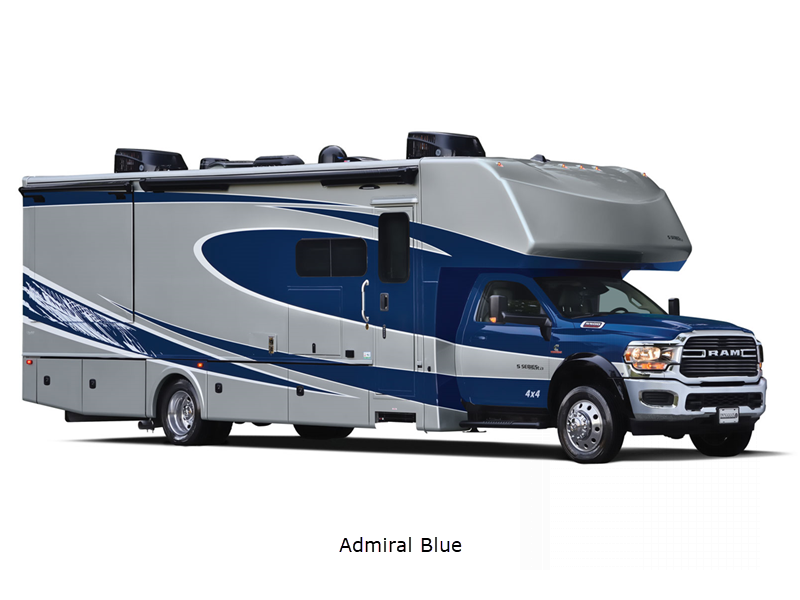

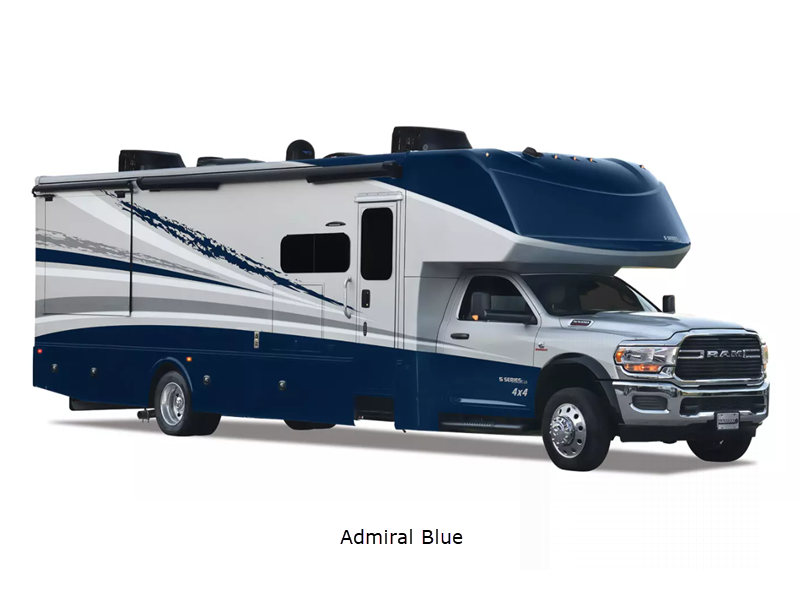

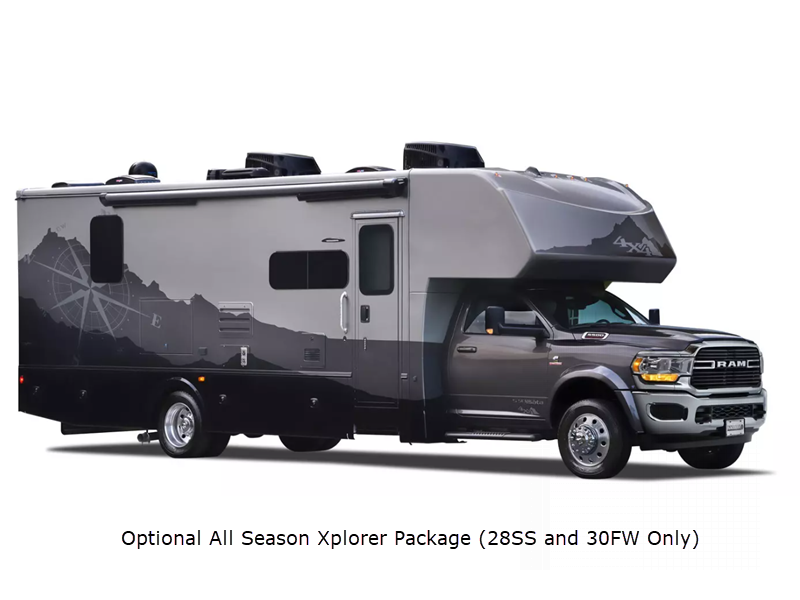

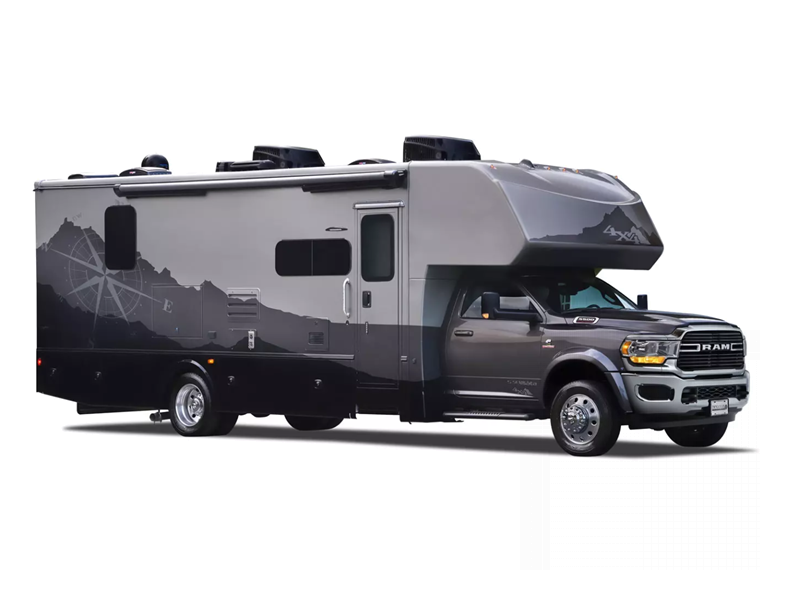

With the Isata 5 Series Super C diesel motorhome by Dynamax, you no longer have to choose who or what gets left behind! You will enjoy a familiar and comfortable truck cab when you're behind the wheel and will be coming up with reasons to go on another trip. Each one of these motorhomes pairs luxury living with a powerful 6.7L I6 Cummins turbo diesel engine to keep their best-in-class towing reputation.



The aluminum truss-structured roof with a one-piece, crowned fiberglass skin ensures you will have a motorhome to last you years of fun. Throughout the inside, you will find lots of entertainment features everyone is sure to love, like the Multiplex Wiring with touchscreen command center, back-lit switch panels, and Bluetooth smart phone app control, plus the exterior features a dual-pitch, armless awning with motion-activated retraction so that you can enjoy the outdoors whenever you please!



It's time for you to get on the road in luxury with a Dynamax Isata 5 Series Super C diesel motorhome!

  • Isata 5 28SS

    Isata 5 28SS Floorplan Image

    Dynamax Isata 5 Super C diesel motorhome 28SS highlights: Private Bedroom ... more about Isata 5 28SS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 0 ft
    Interior Color Seashore, Pebble, Espresso

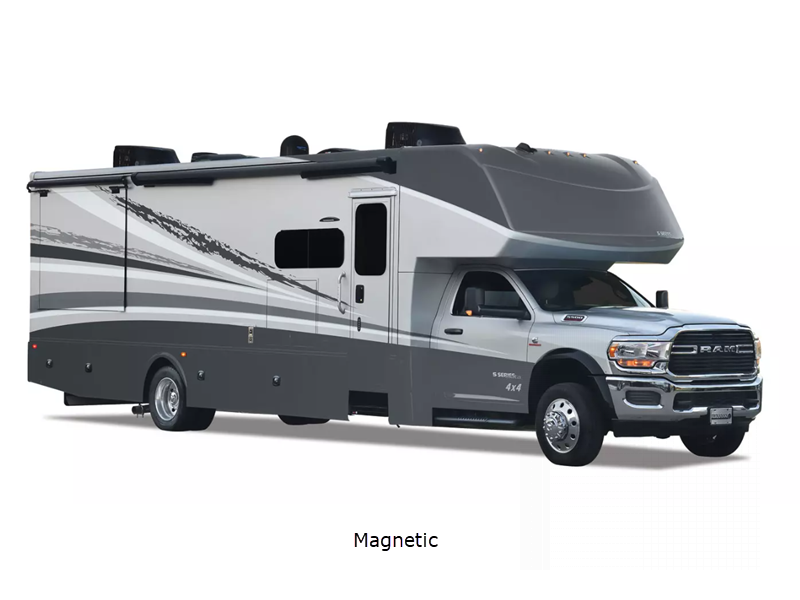

    Exterior Color Cabernet, Cosmic Blue, Granite, Khaki, Magnetic, Sunset
    Hitch Weight 10000 lbs
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 325 hp
    Number Of Bunks 1
    Available Beds Queen
    Torque 750 ft-lb
    Refrigerator Type Residential Stainless Steel
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20.3 gals
    Water Heater Type On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED TV, BR 32" LED TV, EXT 32" LED TV
    Awning Info Armless with LED Light
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Isata 5 30FW

    Isata 5 30FW Floorplan Image

    Take a Virtual Tour

    Dynamax Isata 5 Super C diesel motorhome 30FW highlights: Private Bedroom Three ... more about Isata 5 30FW

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 32 ft 1 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Int Height 0 ft
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Cabernet, Cosmic Blue, Granite, Khaki, Magnetic, Sunset
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 78 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 45 gals
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 325 hp
    Fuel Capacity 52 gals
    Wheelbase 238 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 750 ft-lb
    Refrigerator Type Residential Stainless Steel
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7250 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED TV, BR 32" LED TV, EXT 32" LED TV
    Awning Info 16' Armless with LED Lights
    Gross Combined Weight 37500 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Isata 5 35DB

    Isata 5 35DB Floorplan Image

    Take a Virtual Tour

    Dynamax Isata 5 Super C diesel motorhome 35DB highlights: Three TVs Residential ... more about Isata 5 35DB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 36 ft 5 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Granite, Khaki, Cabernet, Cosmic Blue, Sunset
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 42 gals
    Black Water Capacity 42 gals
    Furnace BTU 42000 btu
    Generator 6 kw Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 325 hp
    Fuel Capacity 52 gals
    Wheelbase 264.5 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 750 ft-lb
    Refrigerator Type Residential Stainless Steel
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7000 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED TV, BR 32" LED TV, EXT 32" LED TV
    Awning Info 10' Armless with LED Lights
    Gross Combined Weight 37500 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Isata 5 36DS

    Isata 5 36DS Floorplan Image

    Take a Virtual Tour

    Dynamax Isata 5 Super C diesel motorhome 36DS highlights: Shower Skylight Sofa ... more about Isata 5 36DS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 36 ft 5 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Cabernet, Cosmic Blue, Granite, Khaki, Magnetic, Sunset
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 95 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 45 gals
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 325 hp
    Fuel Capacity 52 gals
    Wheelbase 264 in
    Number Of Bunks 1
    Available Beds King
    Torque 750 ft-lb
    Refrigerator Type Residential Stainless Steel
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7250 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED TV, BR 32" LED TV, EXT 32" LED TV
    Awning Info 16' Armless with LED Lights
    Gross Combined Weight 37500 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

Isata 5 Features:

Standard Features (2020)



Chassis

  • Ram® 5500 SLT Chassis
  • Cummins® 6.7L I6 Turbo Diesel Engine (325hp/750 ft.-lbs. of Torque)
  • AISIN® HD 6-Speed Automatic Transmission
  • 52-Gallon Fuel Tank
  • 9-Gallon Diesel Exhaust Fluid Tank

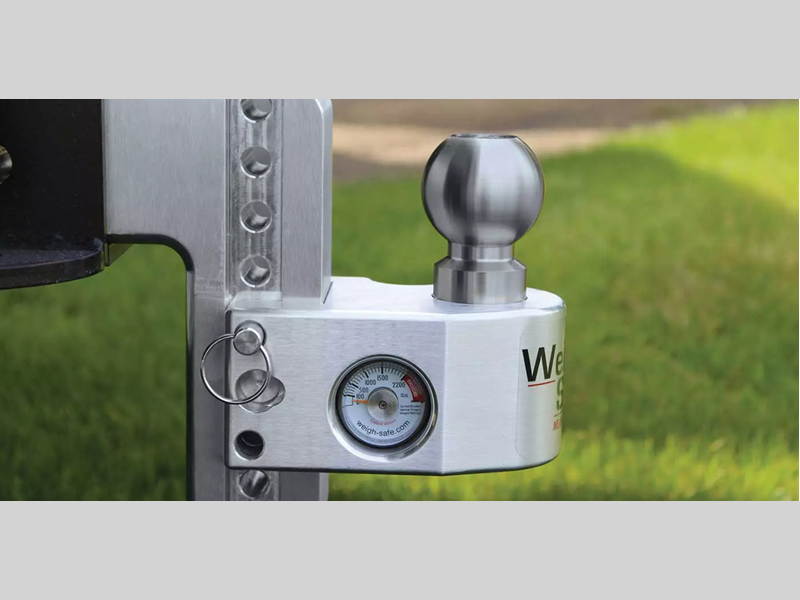

  • Trailer Hitch (10,000 Tow lbs.) with 7-Way Round Tow Connection
  • Ram® OEM Trailer Brake Control
  • Cummins® Smart Exhaust Brake System
  • Ram® ESC Suspension and Stability Package
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Dual 12V Chassis Batteries
  • Dual 220-Amp Alternators (440 Total Amps)
  • 4-Wheel ABS
  • B-20 Bio Diesel Capability
  • Ram® 50KSI Chassis Construction
  • Engine Block Heater
  • Aluminum Running Boards
  • Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
  • Single Front Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
  • Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
  • 4.88 Rear Axle Ratio
  • Daytime Running Lights

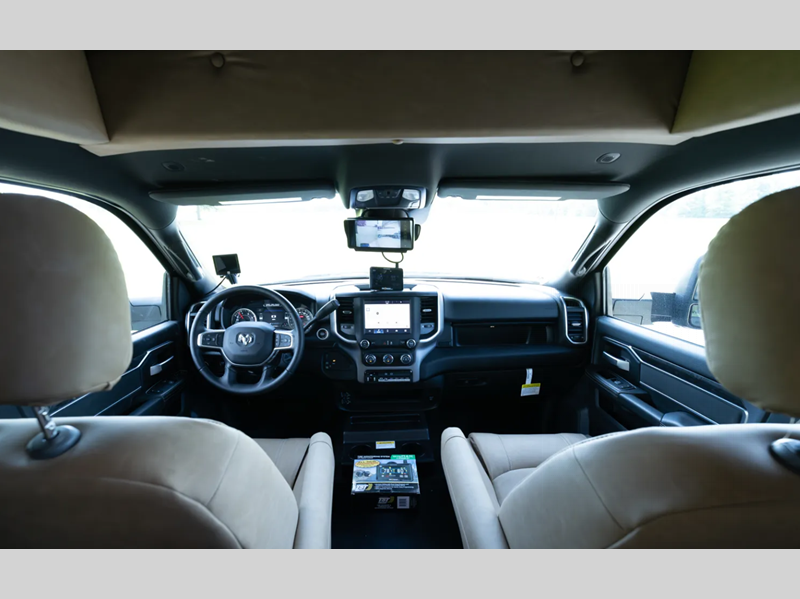

  • Leatherette Reclining Driver and Passenger Seats with Armrest
  • Power Driver Seat
  • Backup and Side View Cameras
  • 12V and USB Accessory Ports
  • Temperature/Compass Gauge with Traveler/Mini-Trip Computer
  • Cruise Control

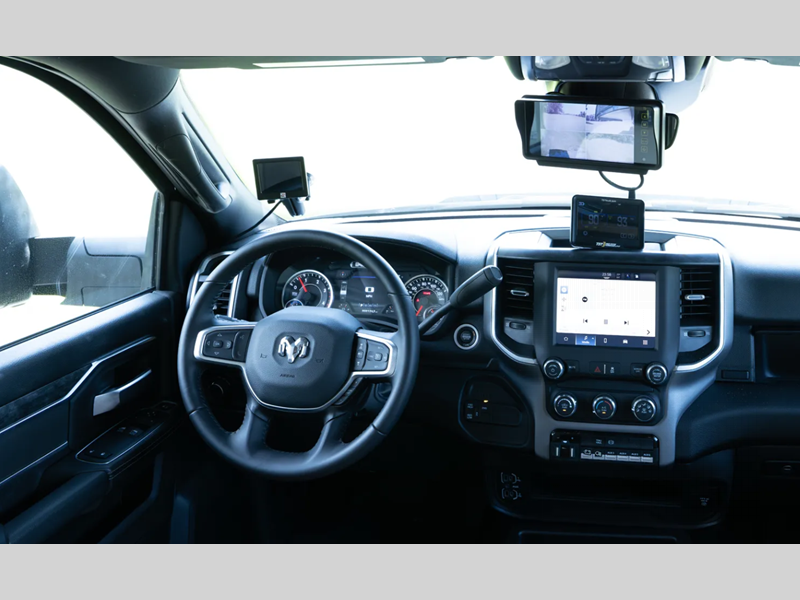

  • 8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
  • Adjustable Steering Column
  • Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Front Safety Airbags
  • Drink Holders

Construction

  • 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Gel-Coat Fiberglass Walls
  • Aluminum-Framed Floor
  • Aluminum-Framed Roof Trusses
  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Fiberglass Front Cap, Rear Cap, and Front Wing Panels
  • Automatic, 4-Point Hydraulic Leveling Jacks
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
  • Electric Slide System

Exterior

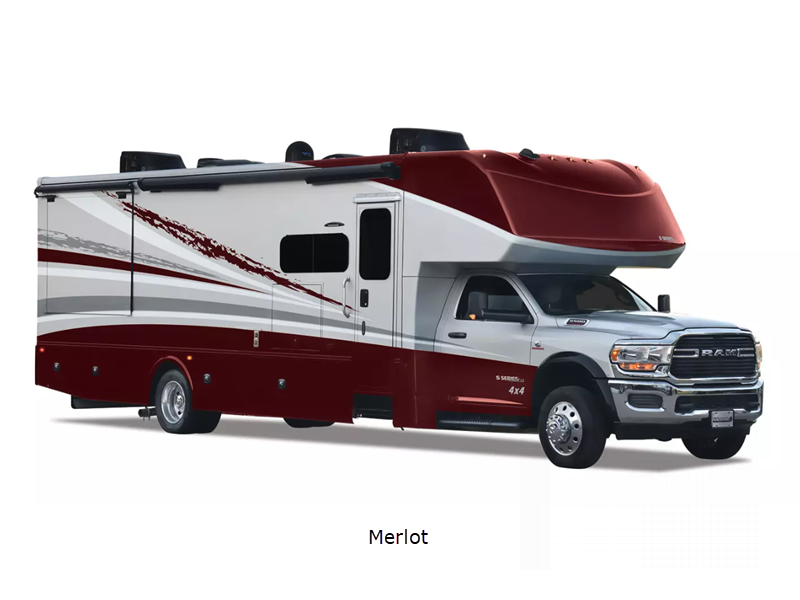

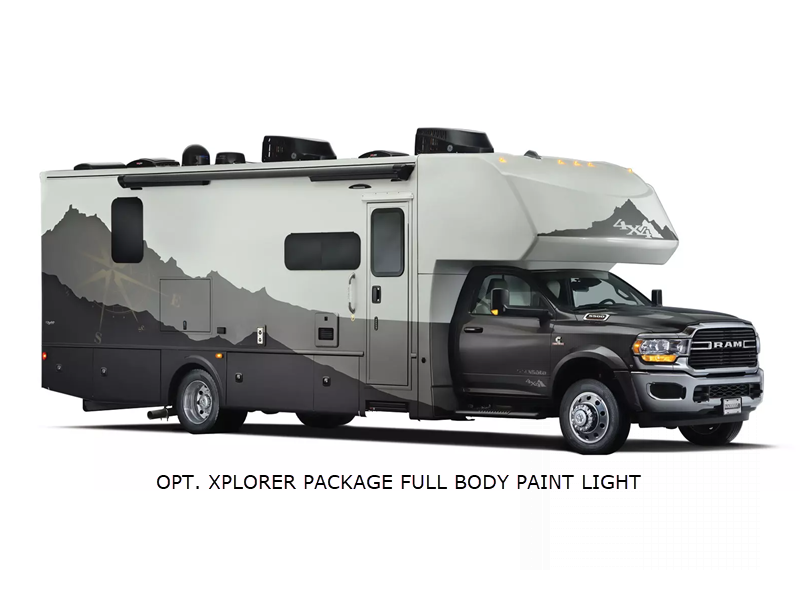

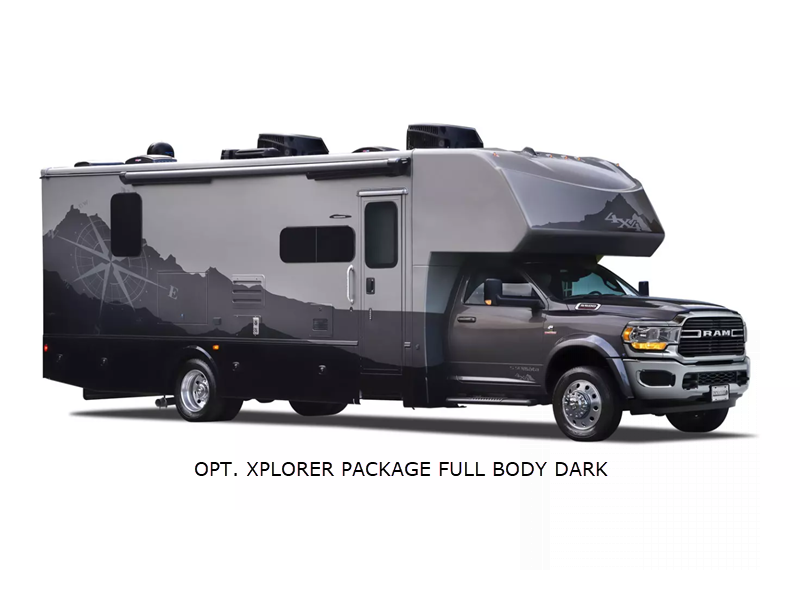

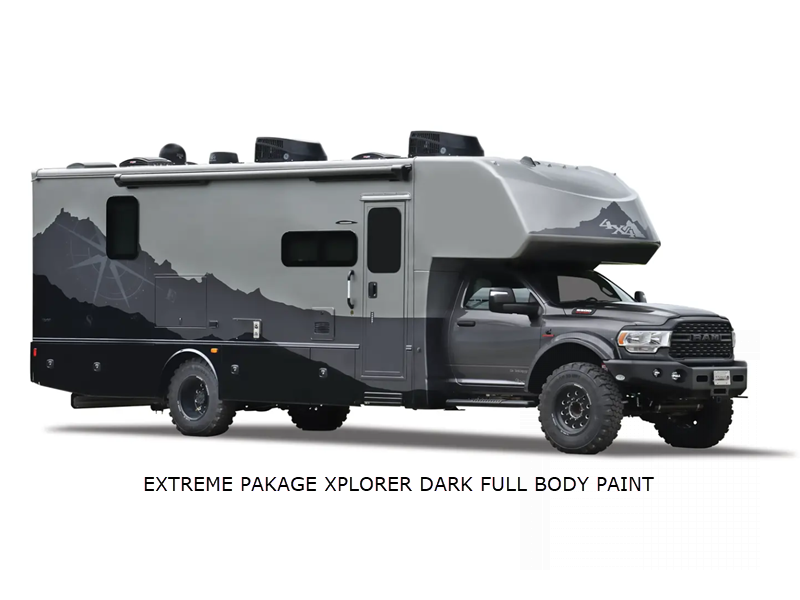

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection

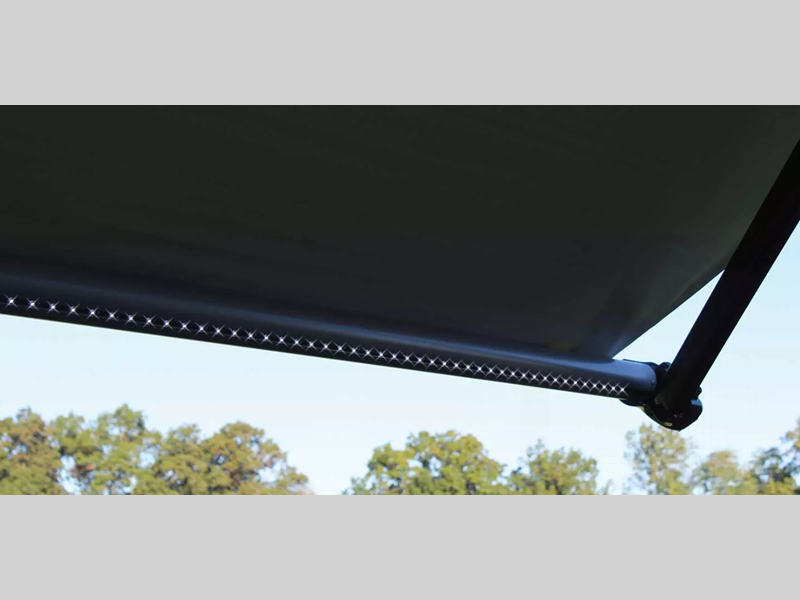

  • Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • Slideout Toppers
  • LED Patio Light
  • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
  • Remote Locking System for Entry Door
  • Keyless Entry Touch Pad at Entry Door
  • Lighted Acrylic Entry Grab Handle
  • Power Entry Steps
  • Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
  • Front and Rear LED Clearance and Marker Lighting
  • Rear LED Docking Lights

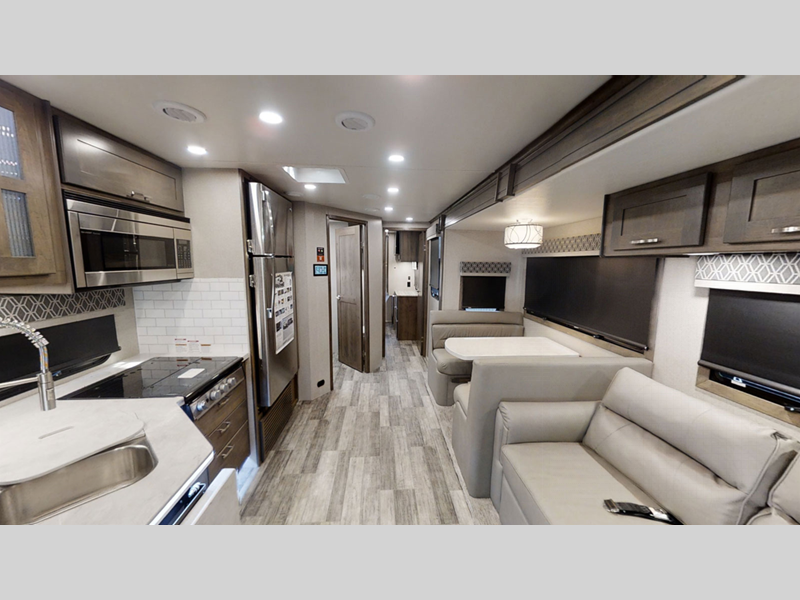

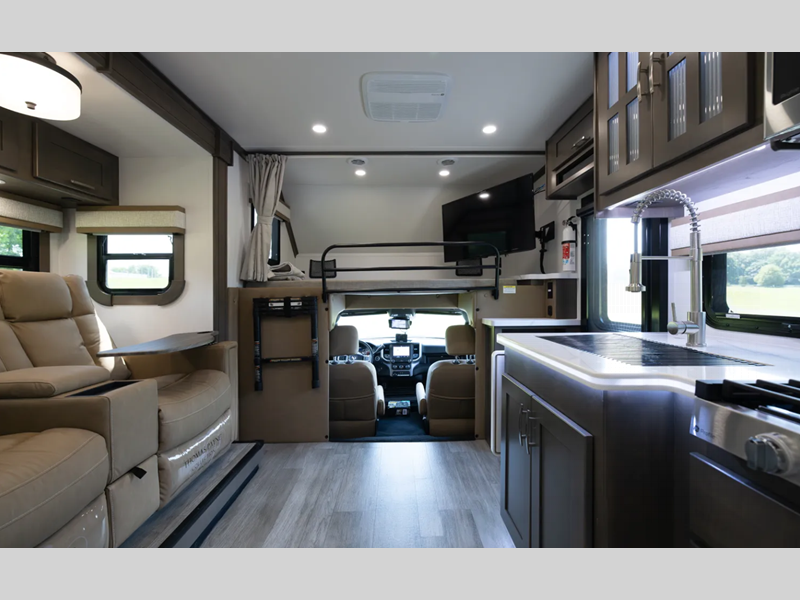

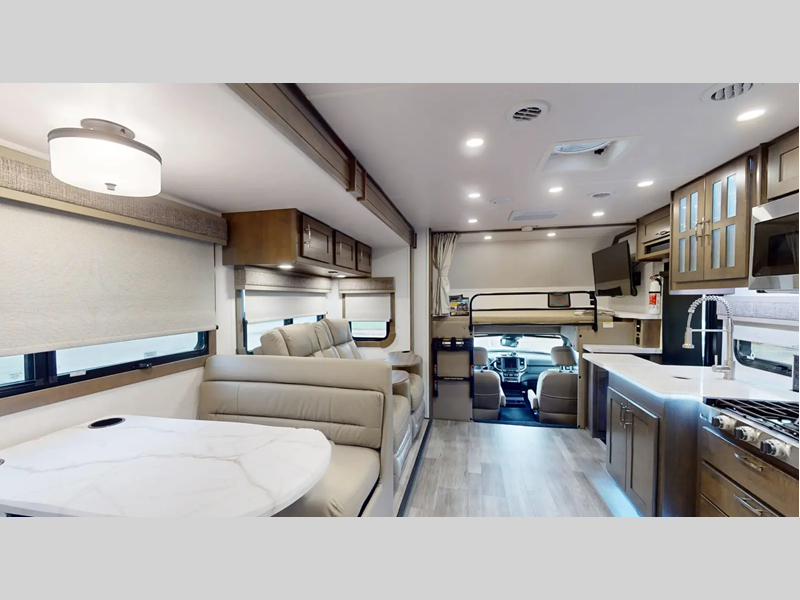

Interior

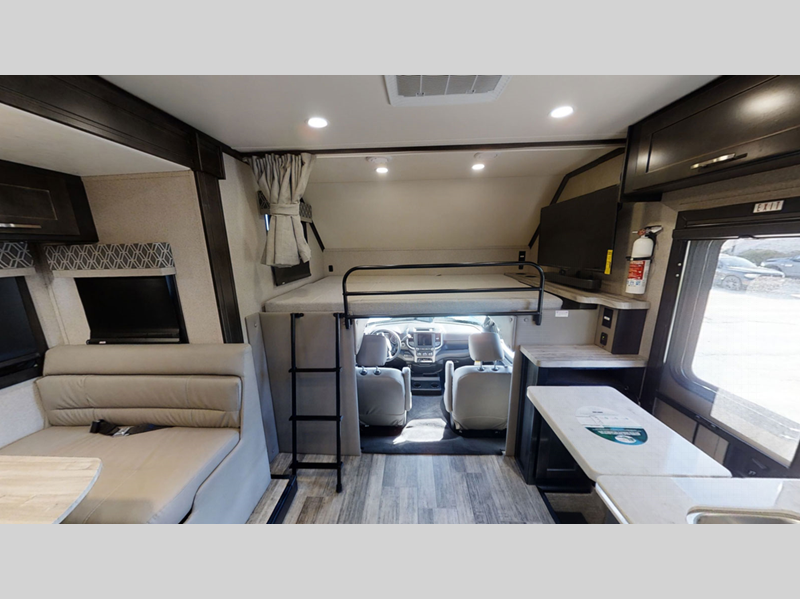

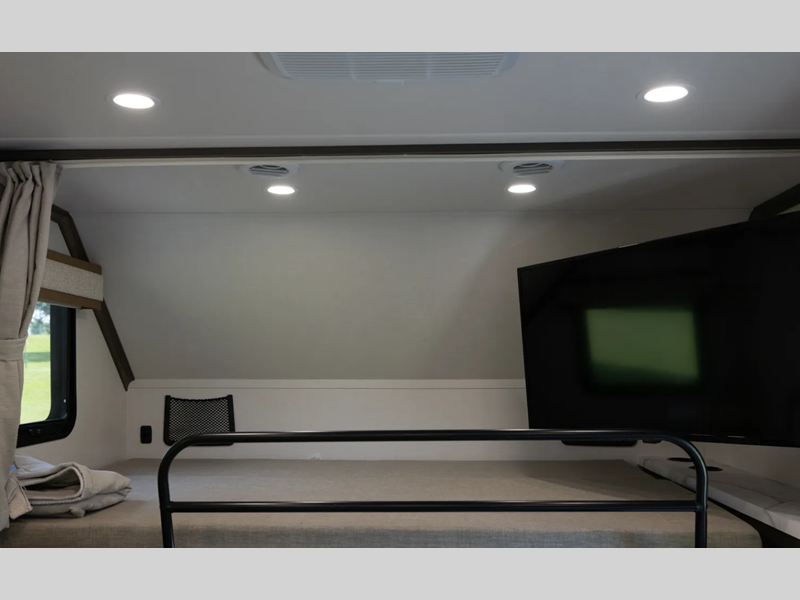

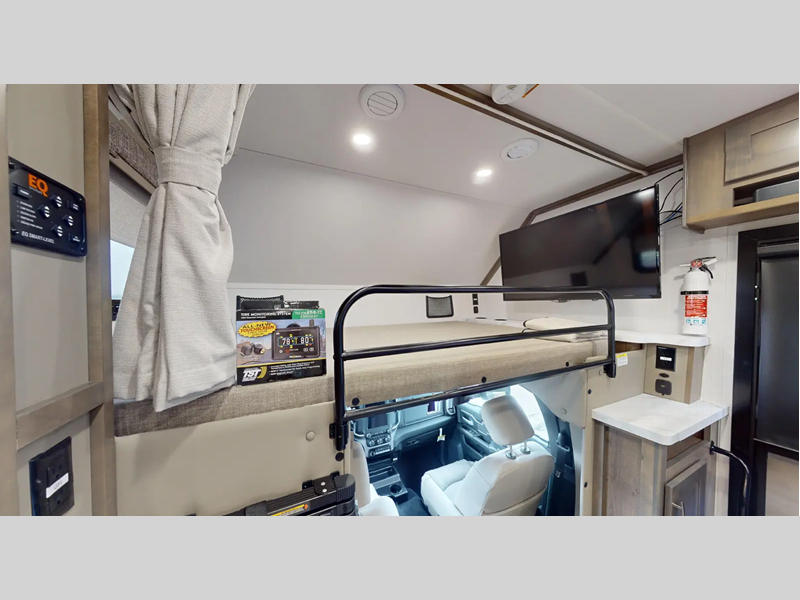

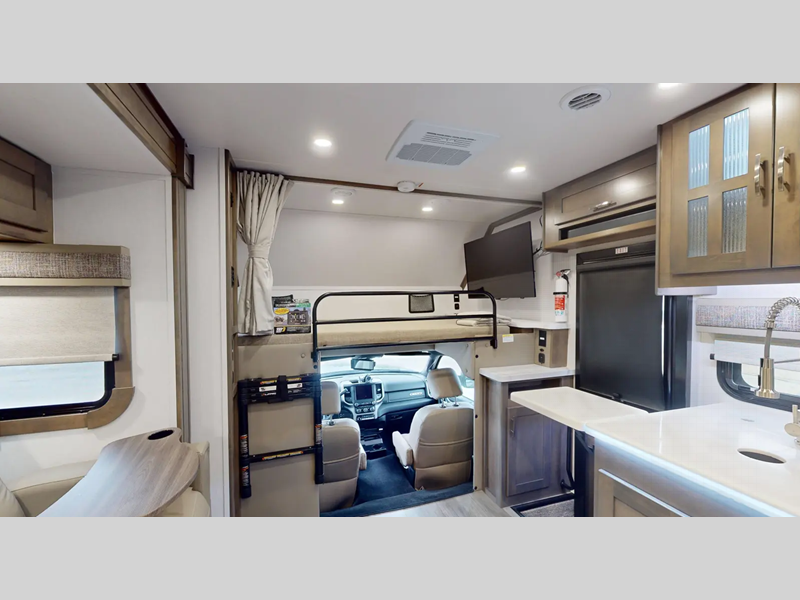

  • Front Cab-Over Bunk Area with Mattress (50” x 80”)
  • Premium Vinyl Flooring Throughout
  • Deluxe Carpet with Pad in Living Area Slide Room(s)
  • Soft-Touch Padded Vinyl Ceiling
  • LED Recessed Ceiling Lights

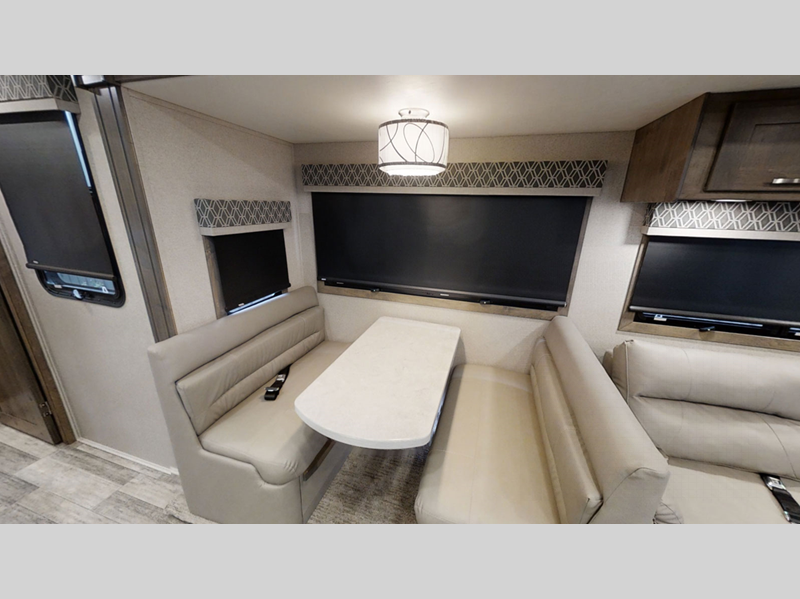

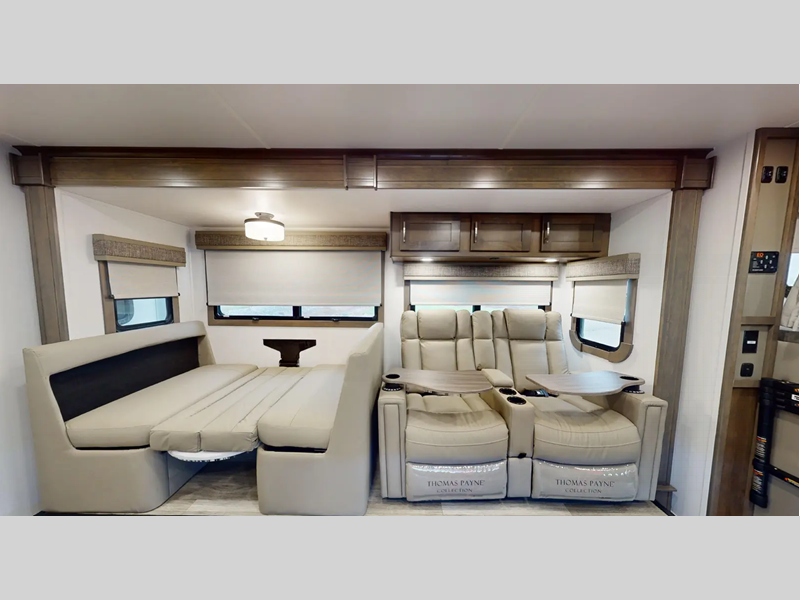

  • Booth Dinette
  • Coordinating Window Treatments
  • Blackout Roller Shades
  • Hardwood Shaker-Style Cabinetry

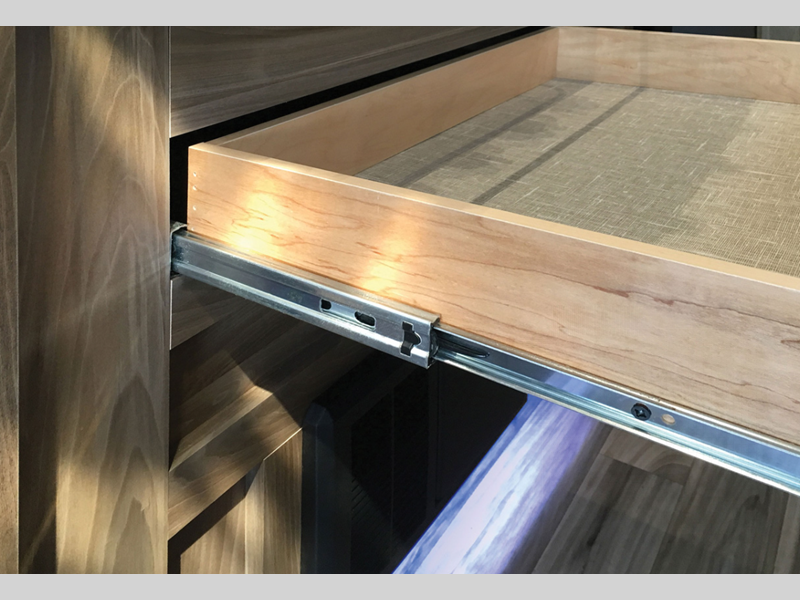

  • Full Extension, Soft-Closing Drawer Guides (Where applicable)
  • Hidden Hinges
  • 39” LED TV (Living Area)
  • JBL® 2.1 Sound Bar with Smart Blu-Ray® Player (Living Area)
  • Entry with Non-Skid Rubber Steps and Risers
  • Privacy Curtain for Cab-Over Bunk
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports

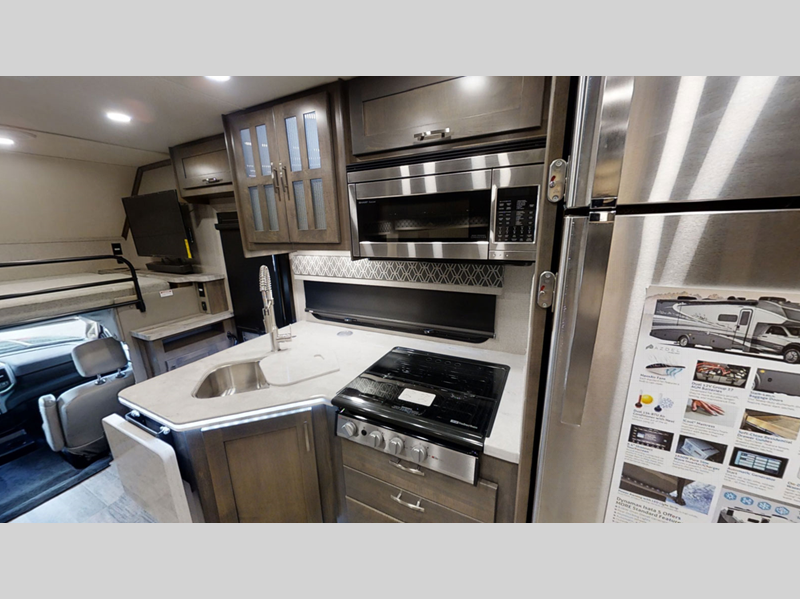

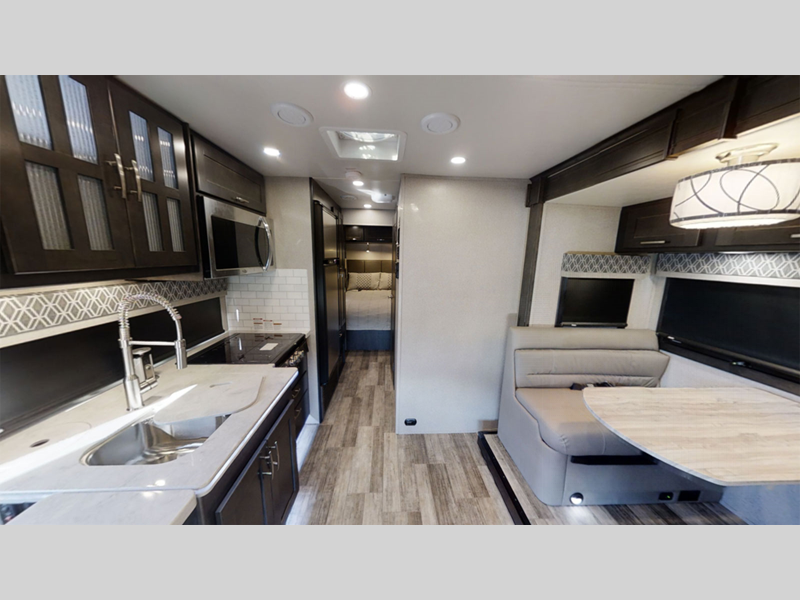

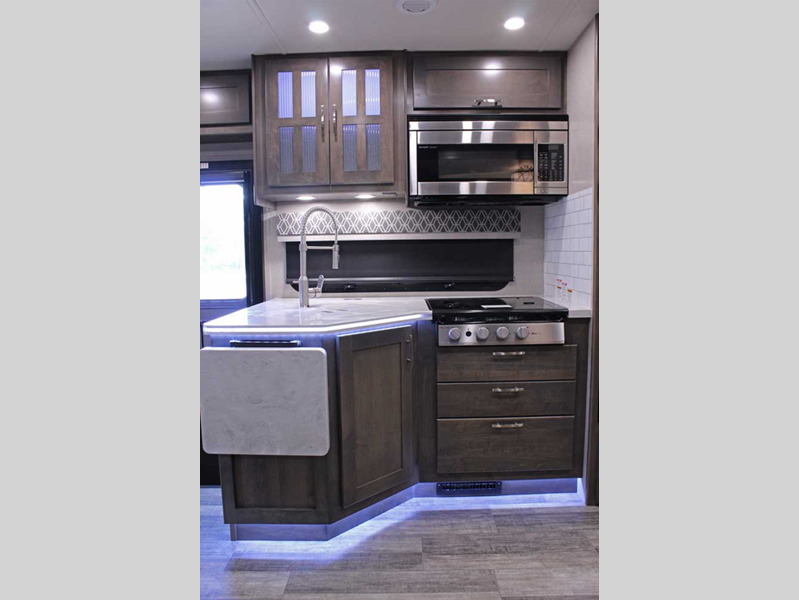

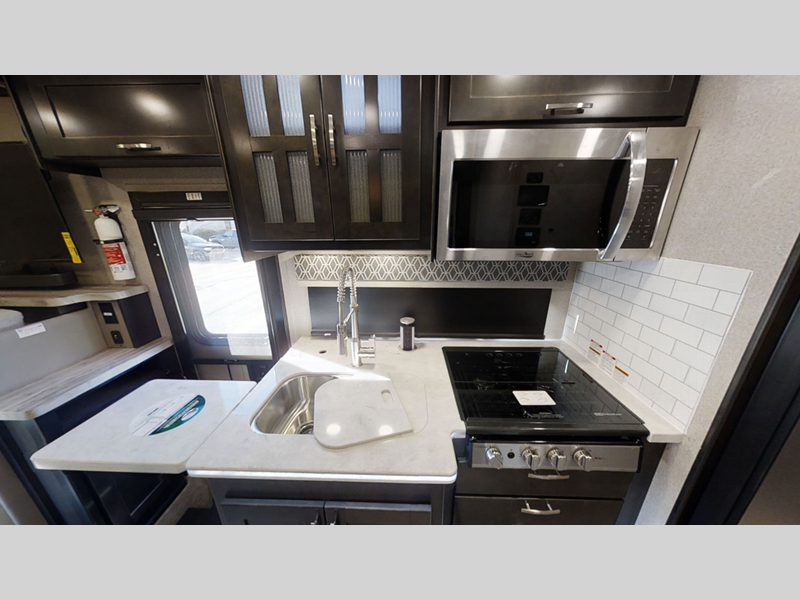

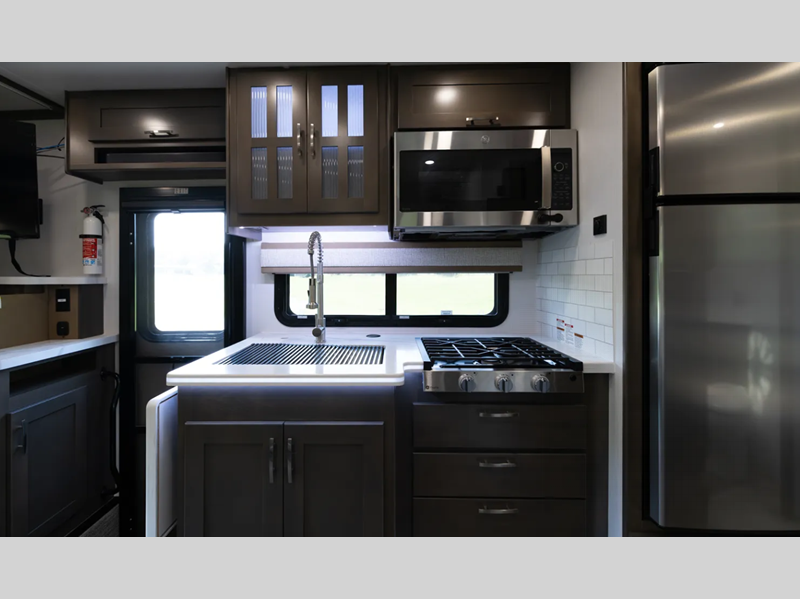

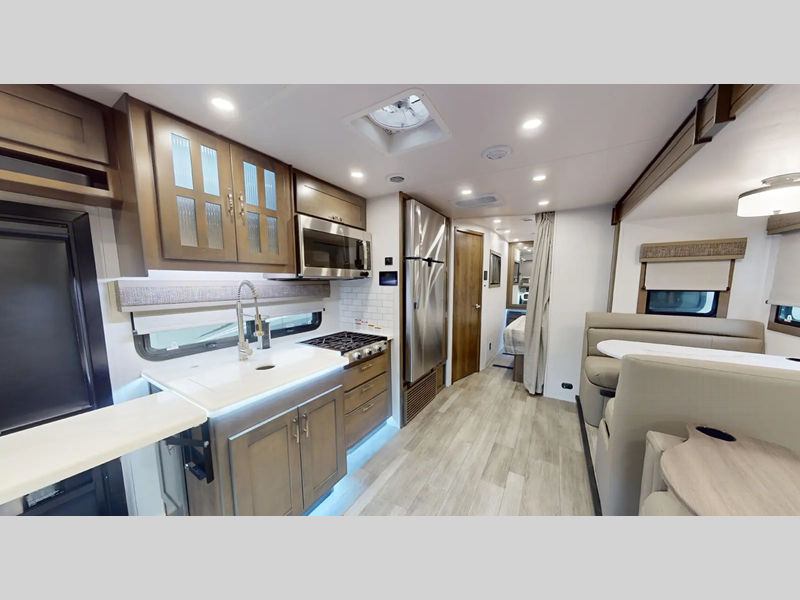

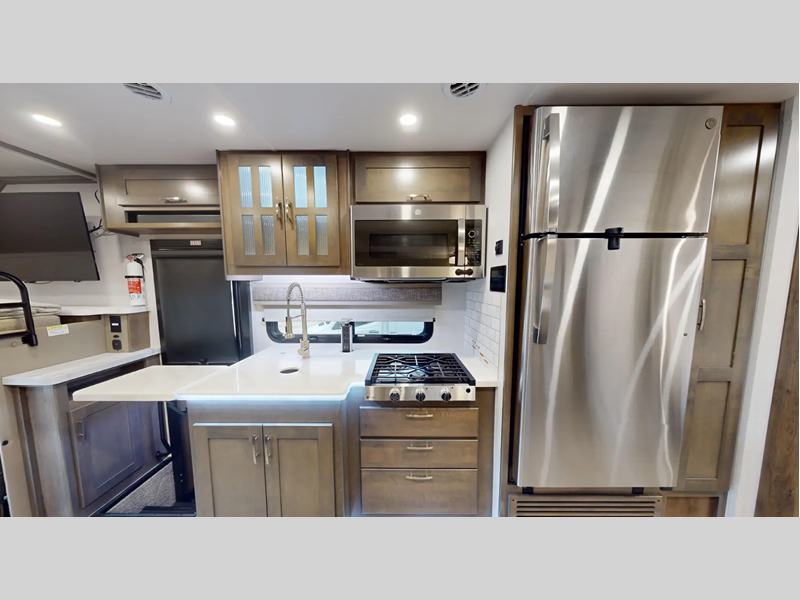

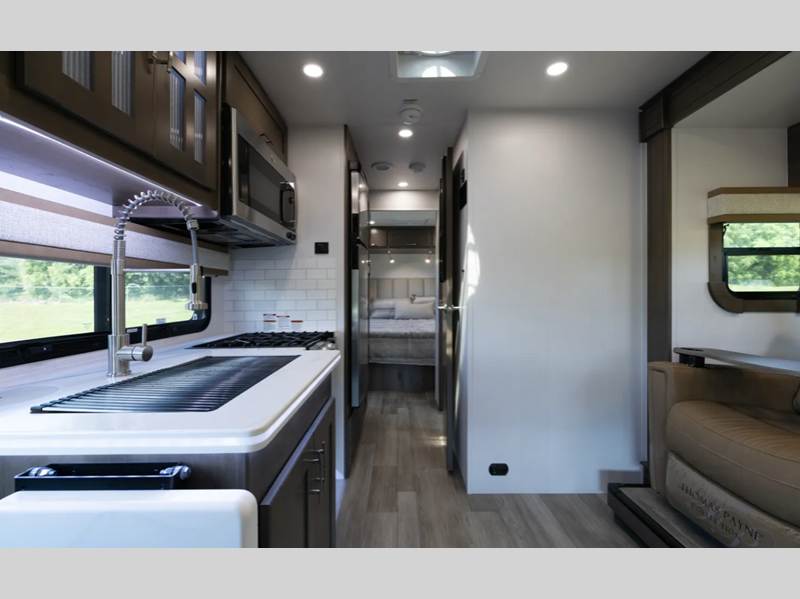

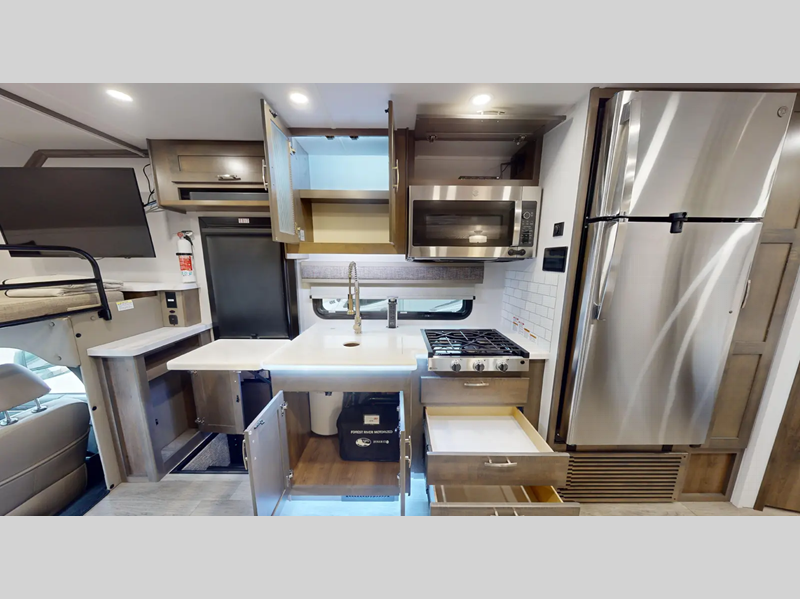

Kitchen

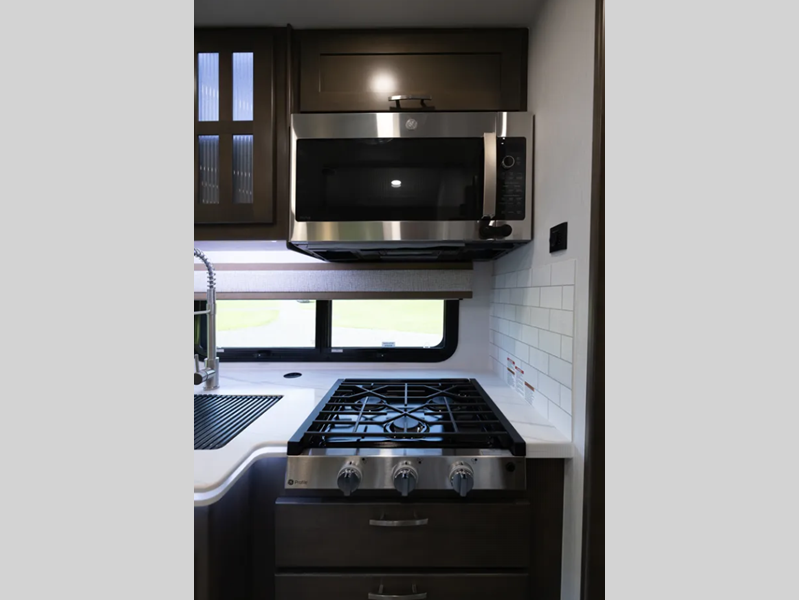

  • Sealed Gas Range with Glass Cover

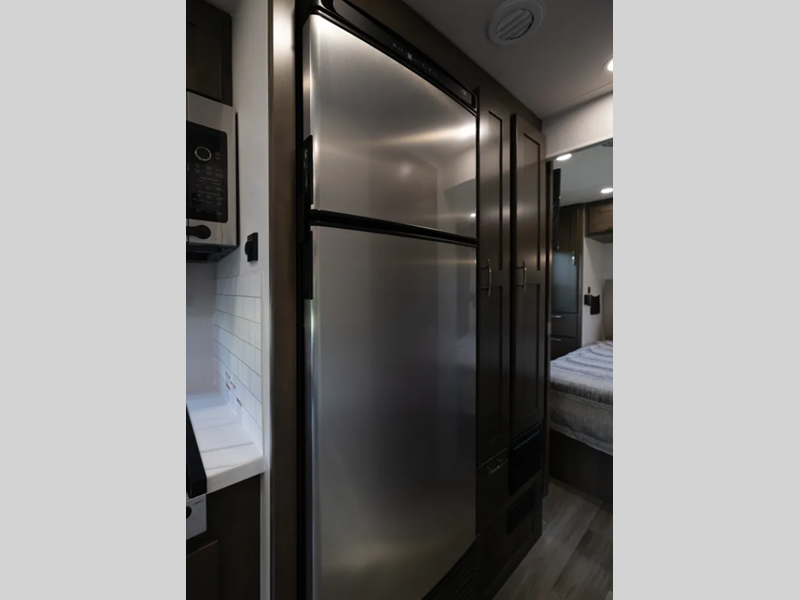

  • 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel)
  • Convection Microwave Oven
  • Solid Surface Countertops
  • Stainless Steel Double-Bowl Sink with Covers

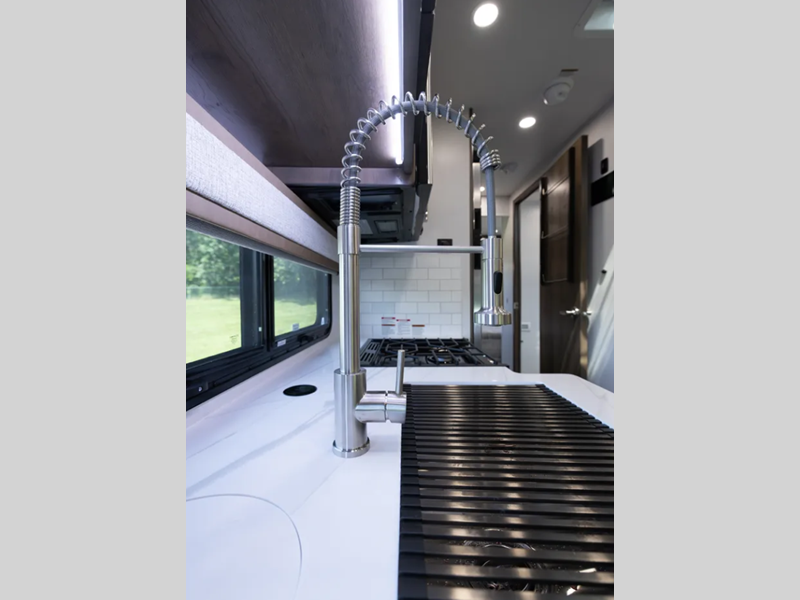

  • Residential Stainless Steel Spring Gooseneck Faucet

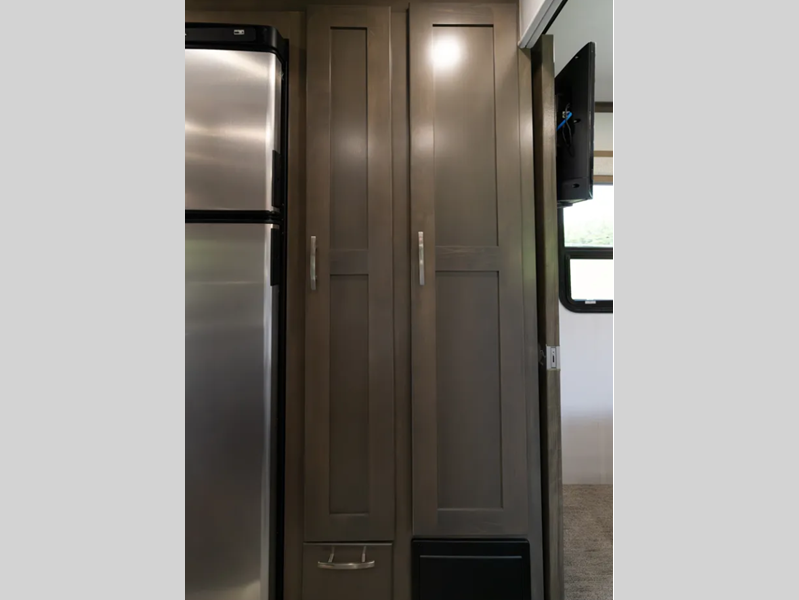

  • Pantry (Floor plan specific)
  • Under-Cabinet Lighting
  • Kitchen Trash Can
  • MaxxAir® Power Vent with Built-In Rain Cover

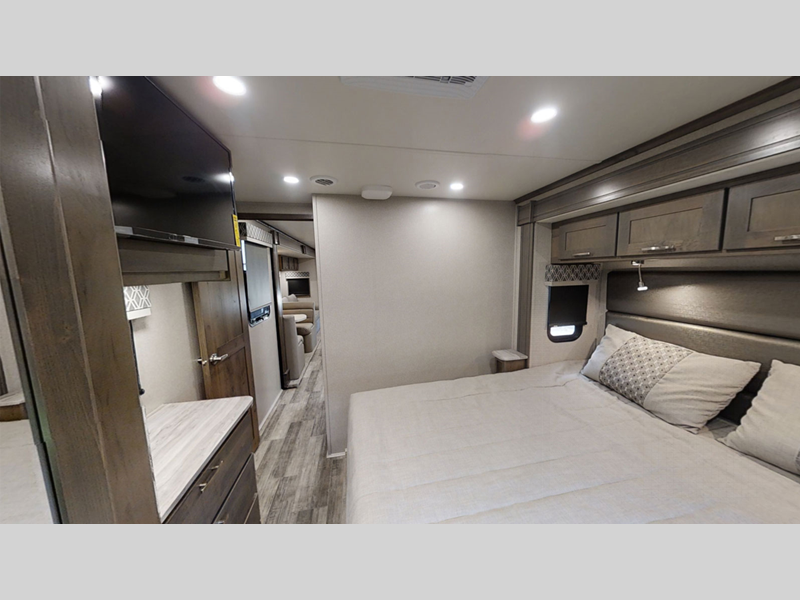

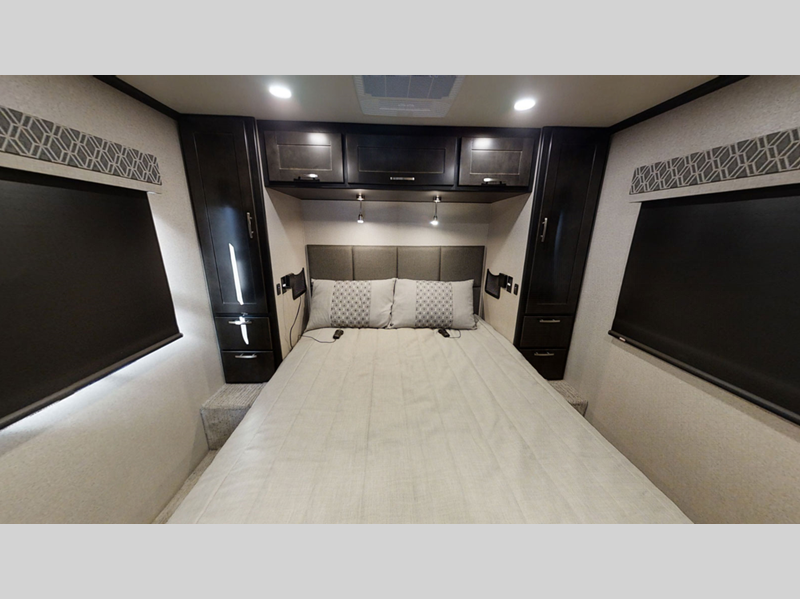

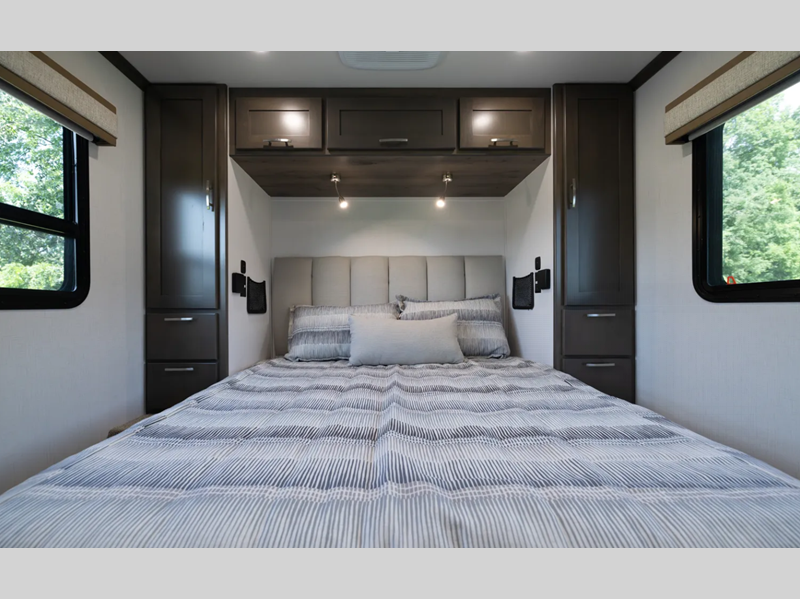

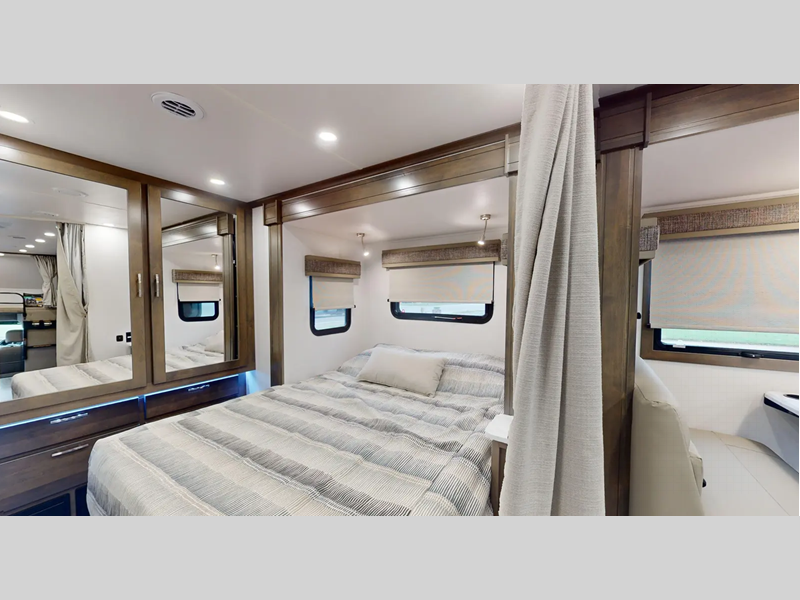

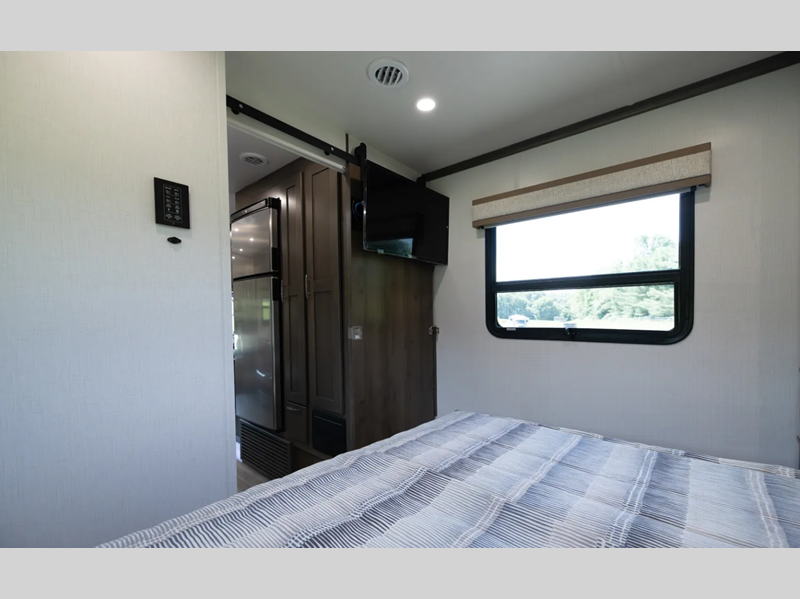

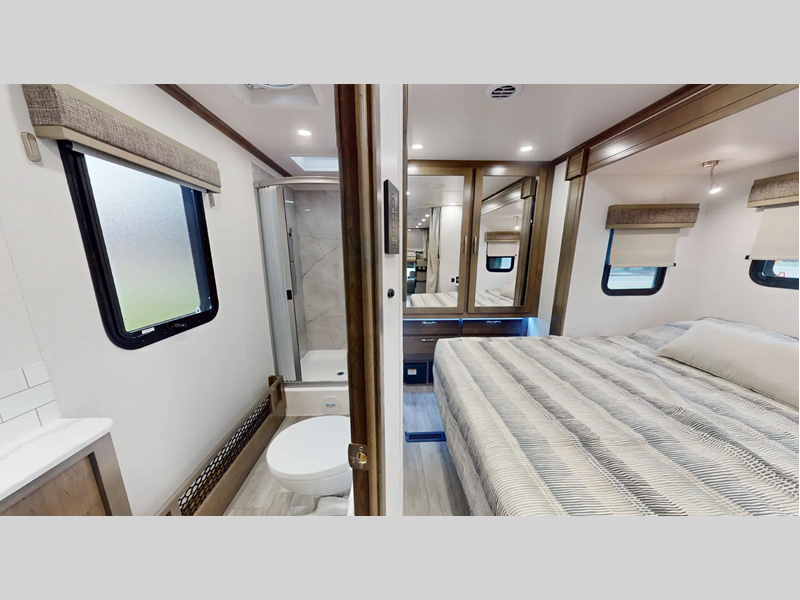

Bedroom or Bunk Area

  • King Bed (67” x 75”) with Gel-Infused Memory Foam Mattress (36DS)
  • Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (35DB and 30FW)
  • Deluxe Padded Headboard (Floor plan specific)
  • Designer Bedding Package
  • 32” LED TV

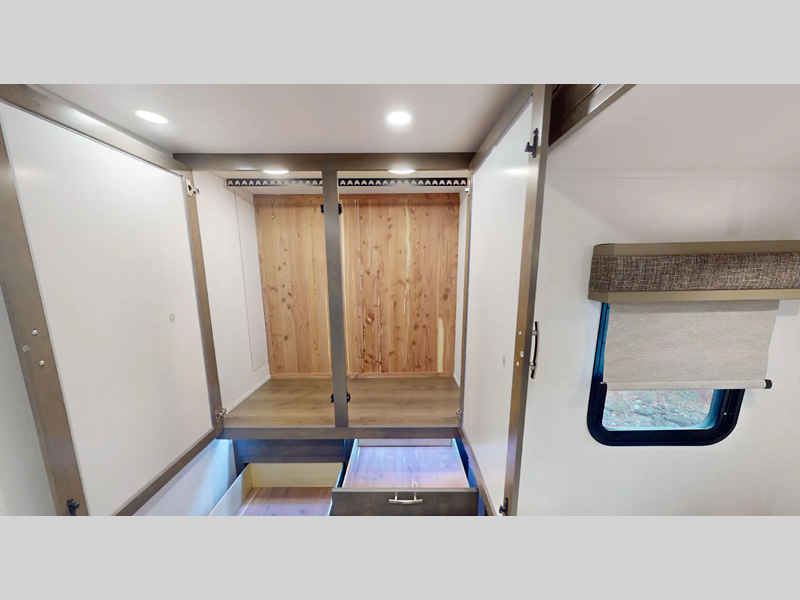

  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports
  • Upper Bunk Bed (28” x 76”) and Lower Bunk Jackknife Sofa (35DB)
  • LED TV in Bunk Bed Area (35DB)

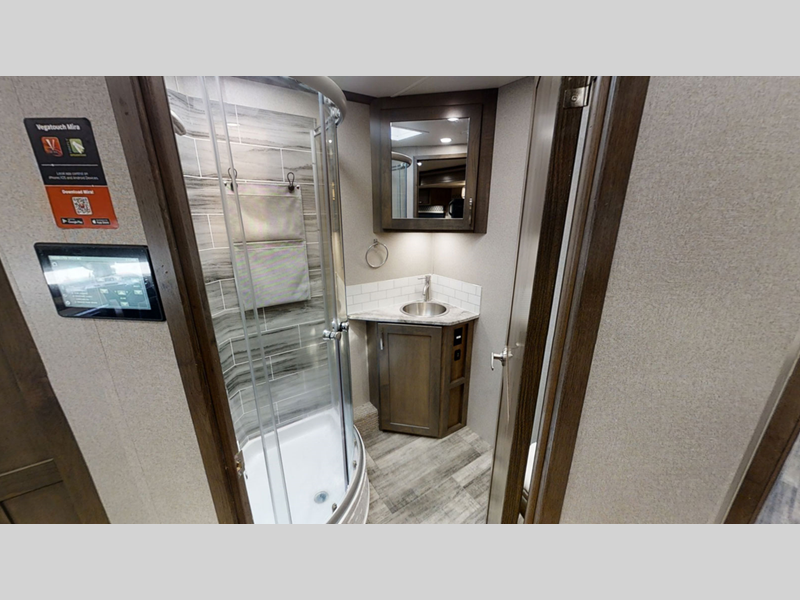

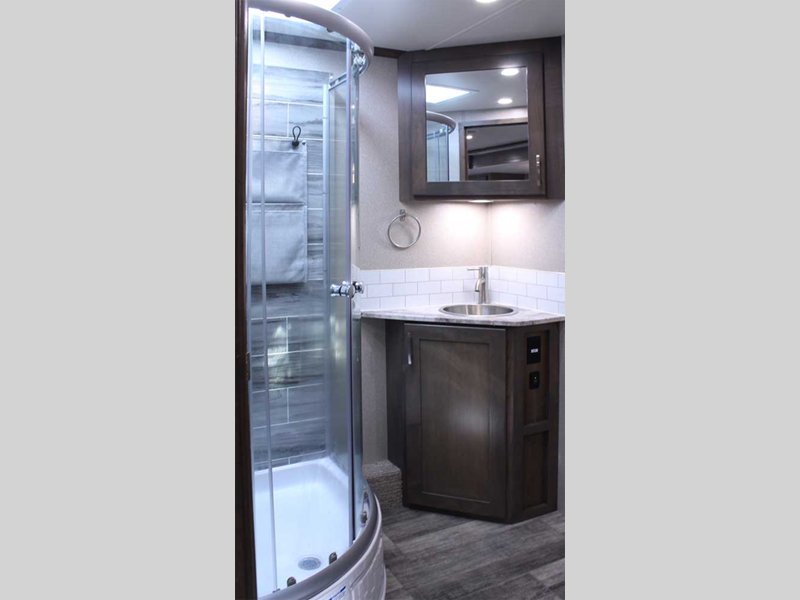

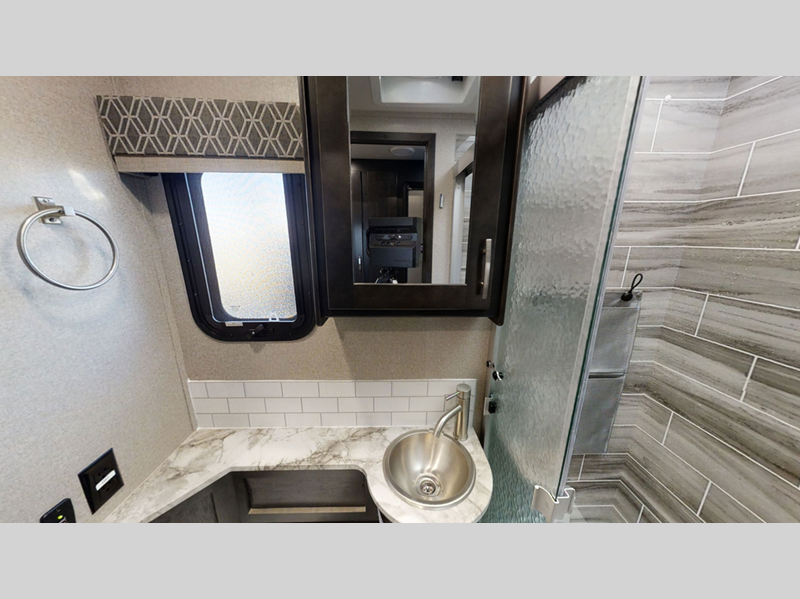

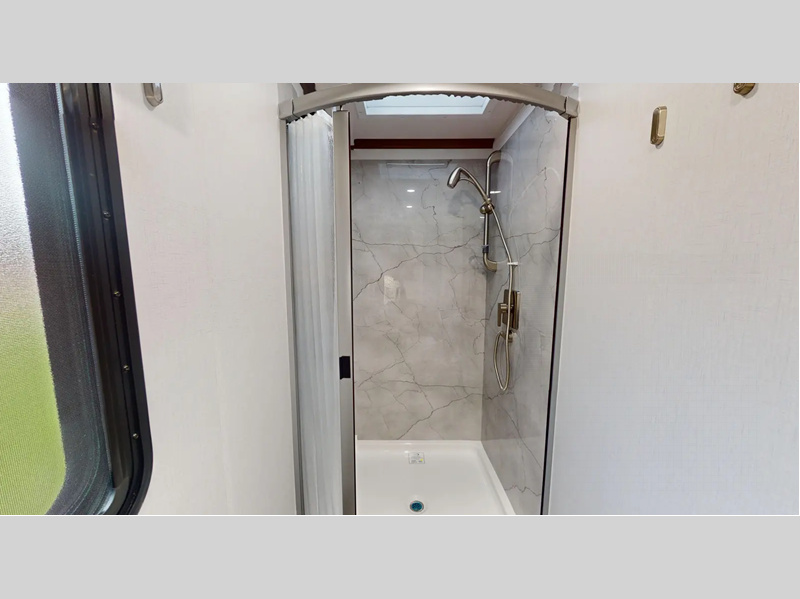

Bathroom

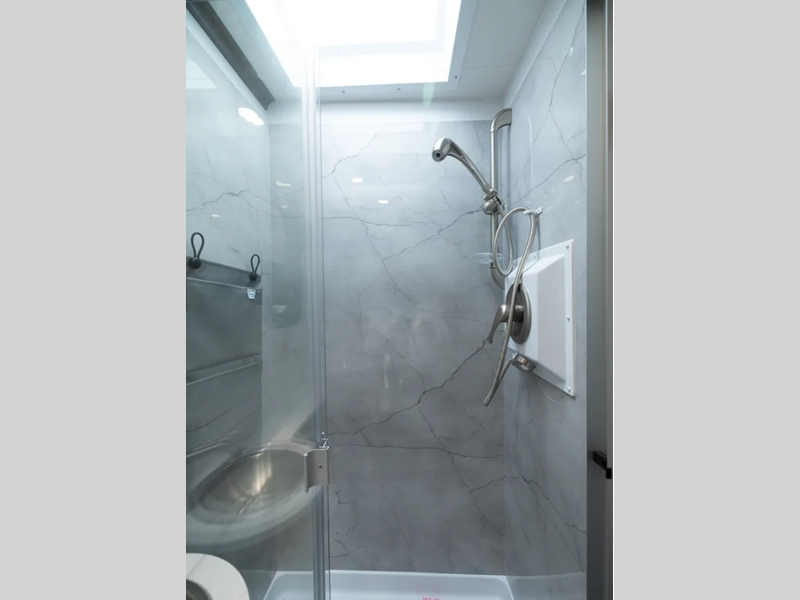

  • ABS Shower
  • Shower Skylight
  • Oxygenics Body Spa® RV Shower Head

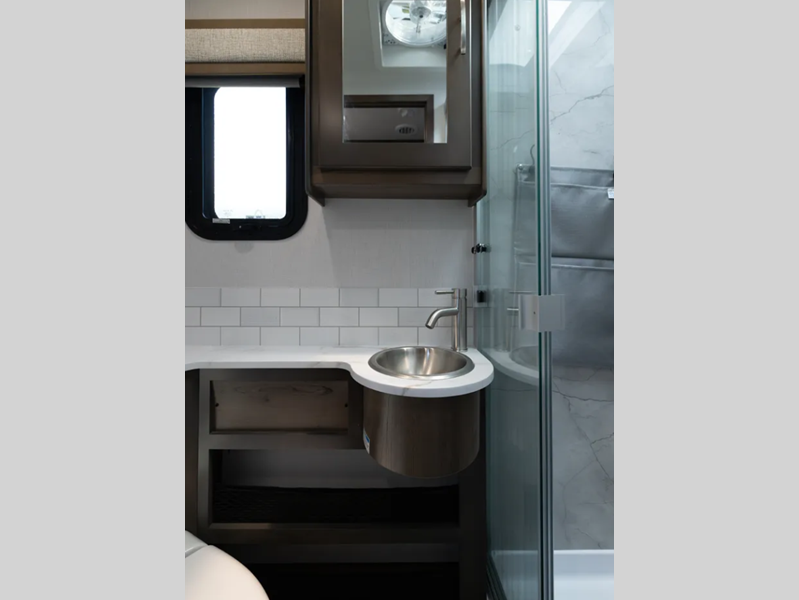

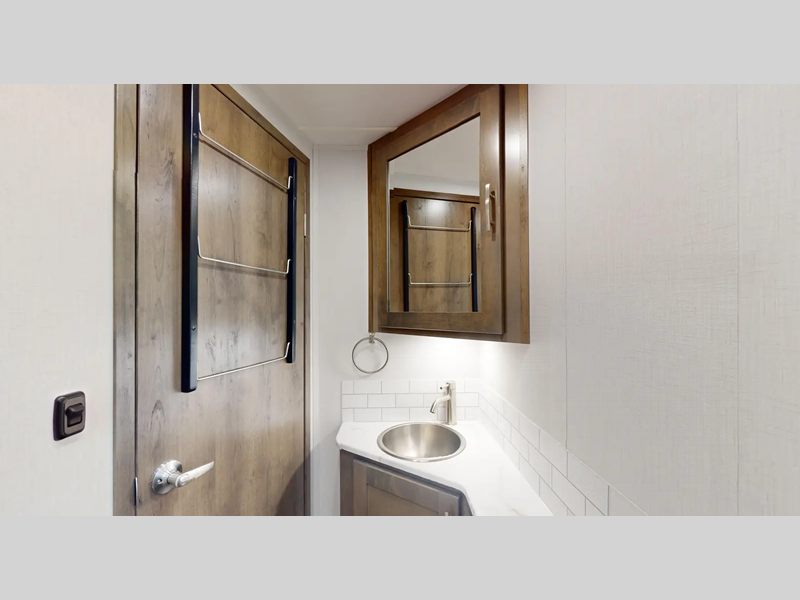

  • Stainless Steel Sink with Residential Faucet

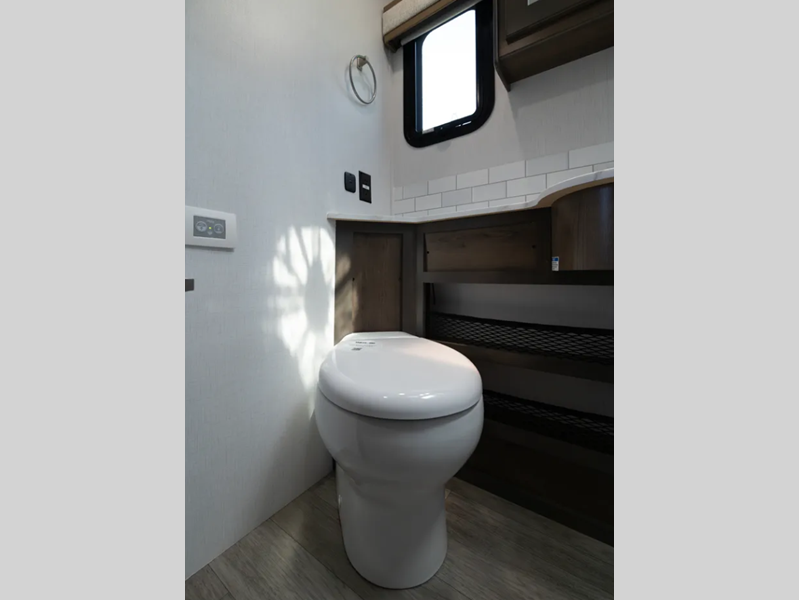

  • Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
  • Porcelain Foot-Flush Toilet (30FW)
  • MaxxAir® Power Vent with Built-In Rain Cover

Utilities

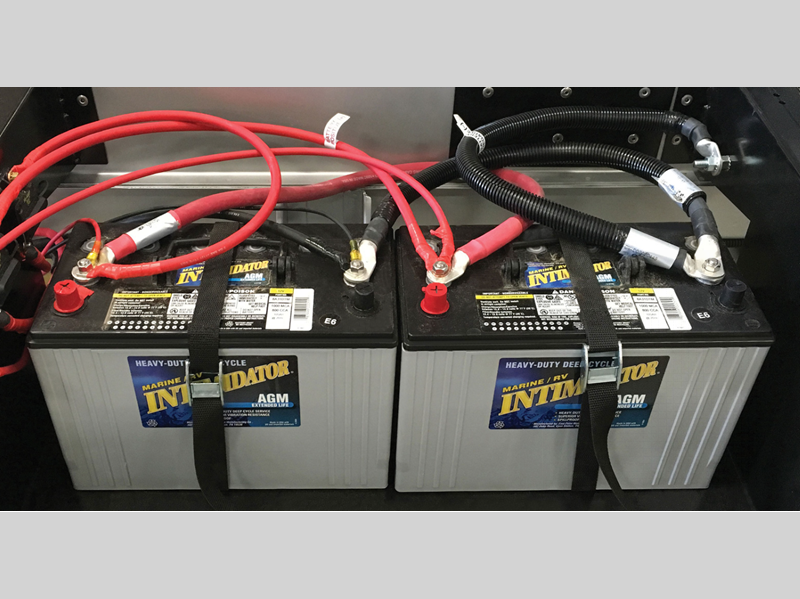

  • Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
  • Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect
  • 50-Amp Service
  • 2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)
  • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)

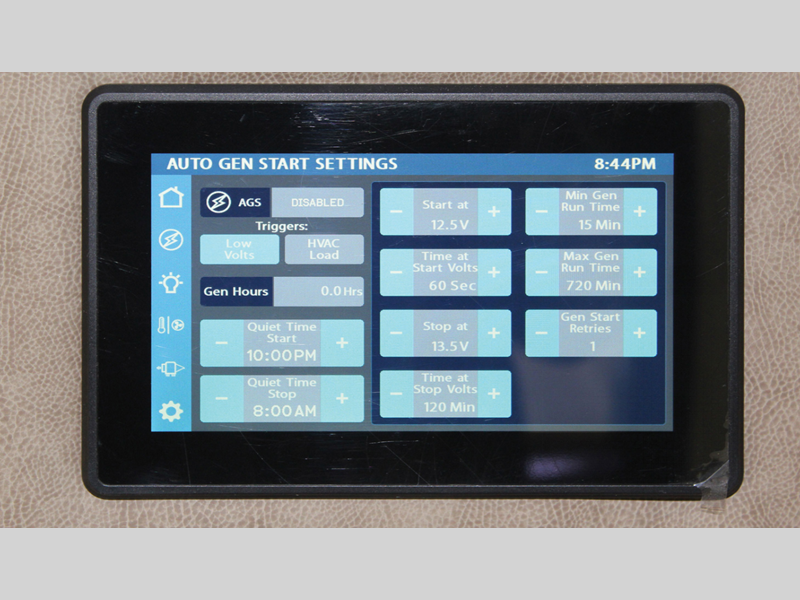

  • Automatic Generator Start
  • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip
  • 42,000-BTU LP Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
  • Thermostatically-Controlled Heating and Cooling
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Exterior GFCI Receptacle
  • Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
  • Cable TV/Satellite Hookup in Service Bay
  • Black Tank Flush
  • Furnace-Heated Utility Compartment
  • Enclosed and Furnace-Heated Holding Tanks
  • Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

Options

  • Factory 4-Wheel Drive (N/A – 35DB)

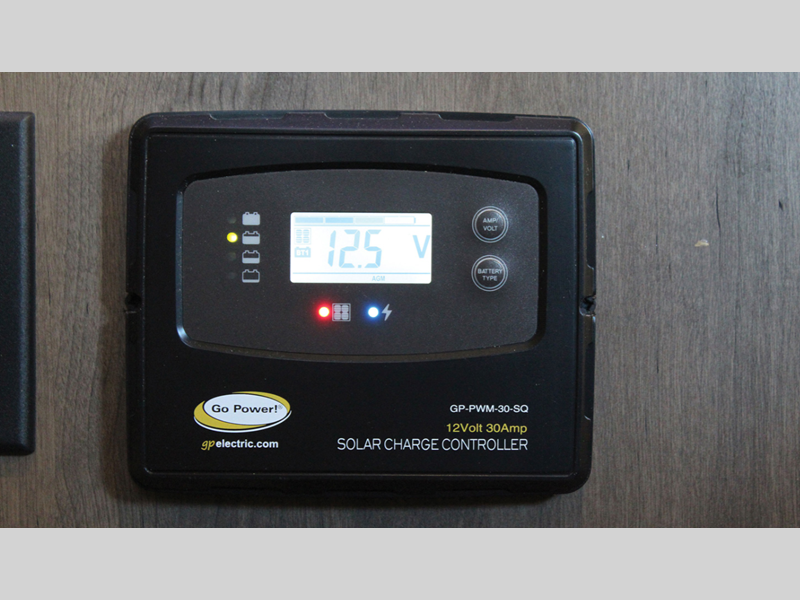

  • Solar Panels - Two 100 Watt with 30 Amp Controller
  • 9 cu ft. 2-Way Refrigerator with Ice Maker in Place of Standard Refrigerator

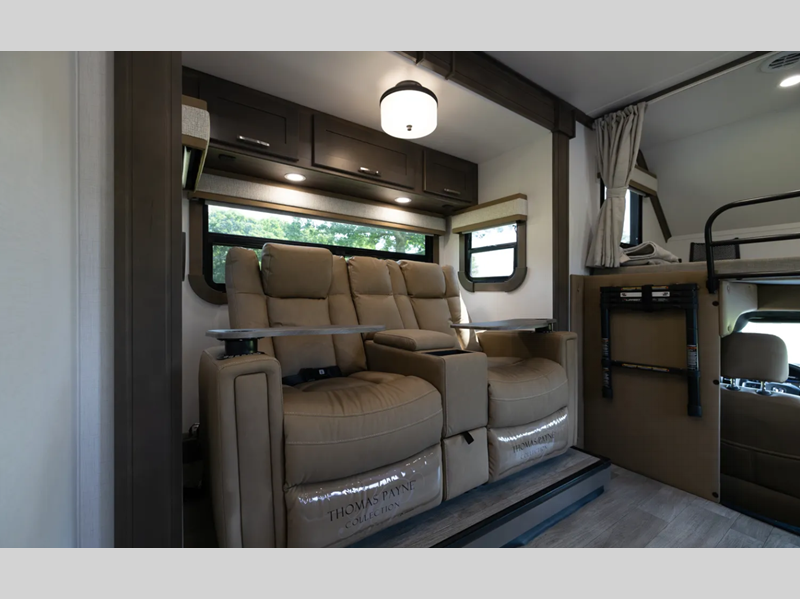

  • Dual Reclining Theater Seats in Place of Sofa
  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • Mobileye® Collision Avoidance System
  • Rear “DYNAMAX” Rock Guard

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

Manu-Facts:

Dynamax Logo

From the day the Dynamax brand originated, a progressive vision has set these prestigious vehicles apart. Built to perform at a higher standard of excellence that goes beyond what meets the eye, Dynamax is driven by an unending pursuit for precision and quality inside out and in-between.

Over the years, legendary product integrity and customer loyalty have combined to build a powerful brand. The foundation for success has been simple. Start with a solidly engineered OEM cab chassis platform and concentrate on building a cohesively engineered muscle car style coach on it. The resulting product is visually appealing and structurally solid, with enhancements that improve maneuverability and ride comfort.

We work hard to provide the most enjoyable ownership experience in the industry. Through our dedicated on-site service department and our industry-leading Two-Year Coach Warranty, we are able to provide incredible value and successfully cultivate wonderful relationships with our owners.

At Dynamax, reaching a higher standard is not an option, it’s a tradition. When you take our higher standards of safety, quality, and reliability and then back them up with our industry-leading warranty & customer service, you get a very powerful combination. Just as in a home, an RV provides a number of opportunities for something to go wrong. While we work hard to assure that things do not go wrong, we make sure that our Warranty and Customer Service Support is there to take care of you if something does!

Dynamax is stronger than ever as part of Forest River, Inc. You can have confidence that we will be around to make your ownership worry free for a long time to come.
