Dynamax isata 3 Motor Home Class C - Diesel RVs For Sale

Previous
Next
1 of 20

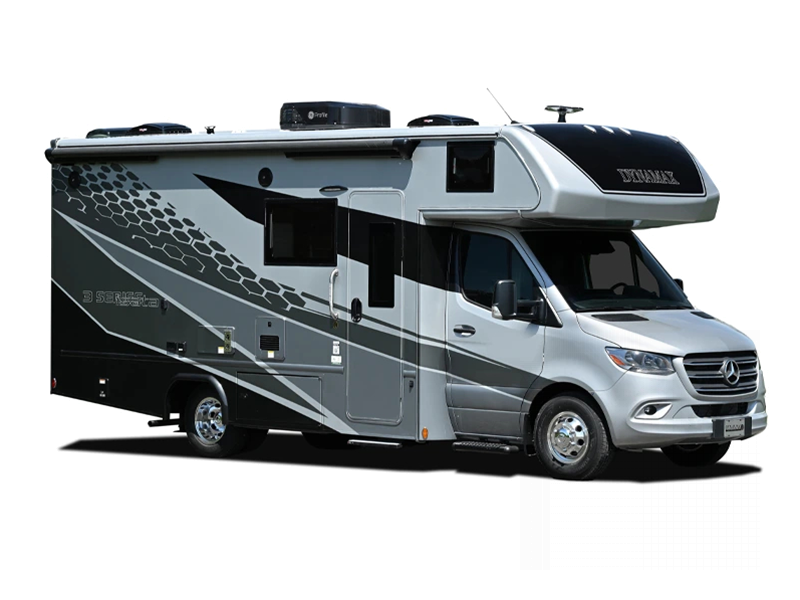

The Dynamax isata 3 Class C diesel motorhomes are different by design! A fuel efficient 2.0L l-4 turbo diesel engine and Mercedes-Benz Sprinter chassis propels these units to every destination you wish to visit.



Each model has an extensive list of upgraded, standard features with contemporary interiors and functional living spaces. You will be able to enjoy life on the road for years to come thanks to the durable composite exterior fiberglass with no exterior wood, plus a crowned, one-piece fiberglass roof and aluminum-framed floor. The automatic, 4-point hydraulic leveling jacks come with Bluetooth smart phone app control to make setting up even easier, and there is a quad-view camera system to maneuver in and out of the campground like a pro!



Start traveling in true luxury with the Dynamax isata 3 Class C diesel motorhomes!

  • isata 3 24FW

    isata 3 24FW Floorplan Image

    Dynamax isata 3 Class C diesel motorhome 24FW highlights: Queen Bed Booth ... more about isata 3 24FW

    Specifications

    Sleeps 3
    Slides 1
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 9 in
    Interior Color Desert, Milano

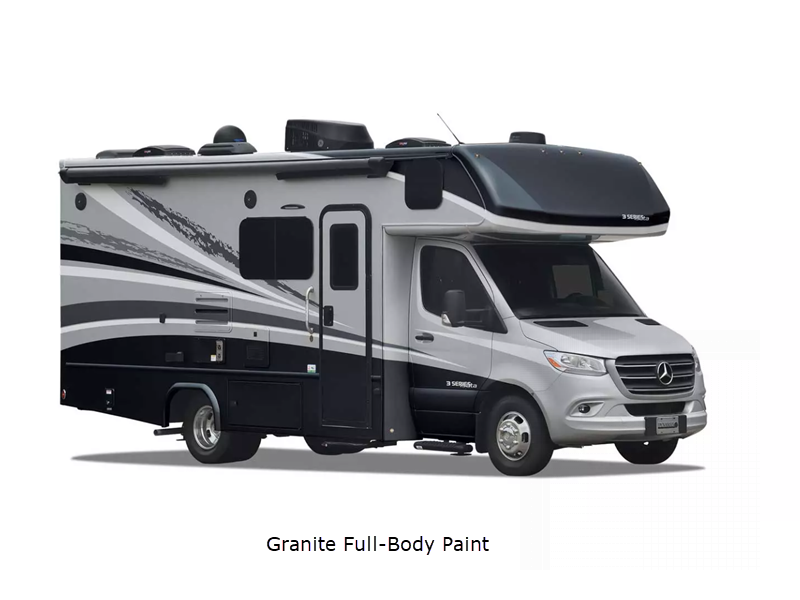

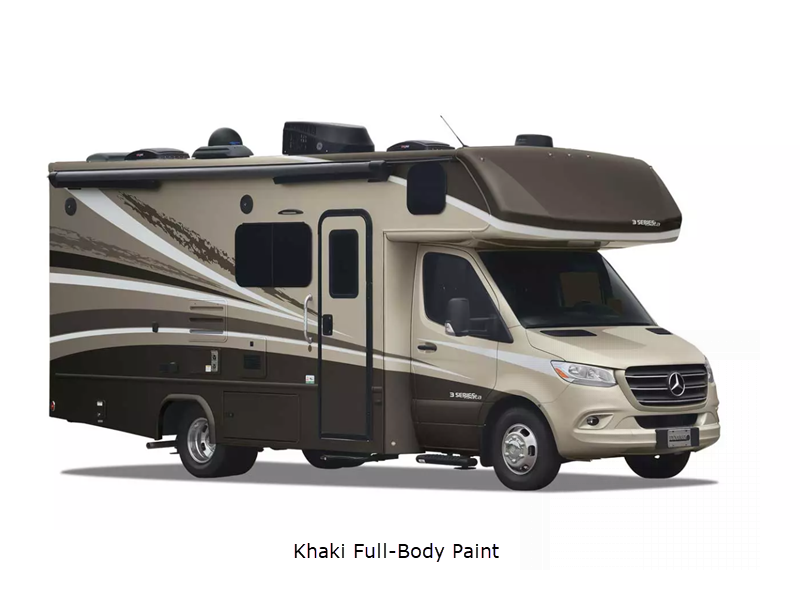

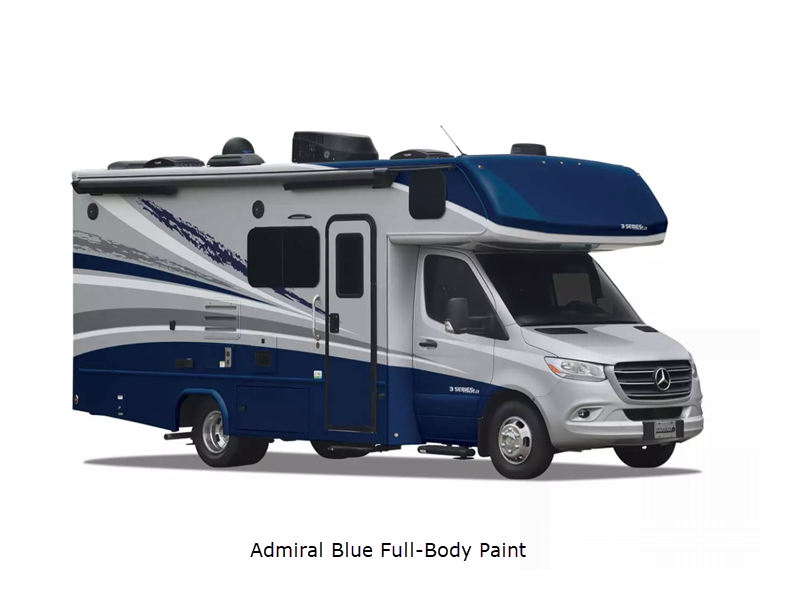

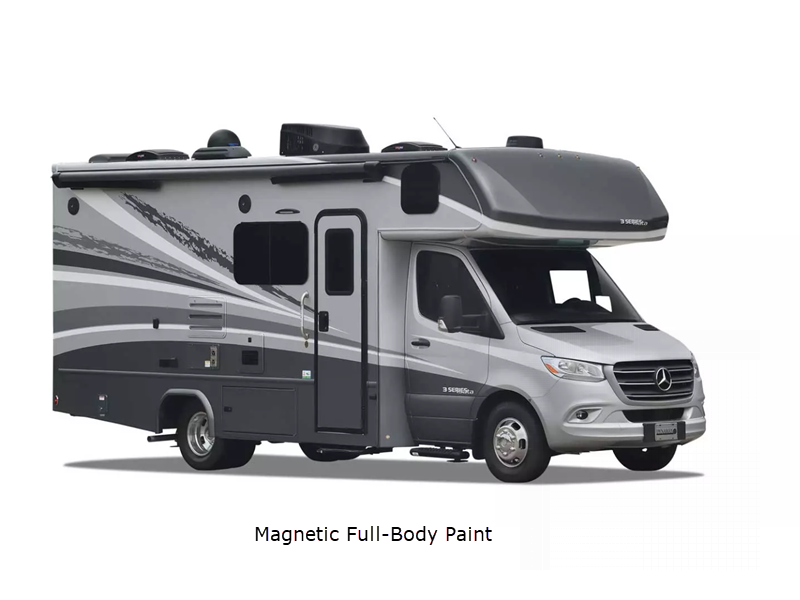

    Exterior Color Full Body Paint; Admiral Blue, Granite, Khaki, Magnetic, Merlot
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16"
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 2.0L I-4
    Chassis Mercedes Benz Sprinter
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Queen
    Torque 332 ft-lb
    Refrigerator Type 12V Two Door Compressor Driven
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED Smart TV, BR 32" LED Smart TV
    Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 3
    Slides 2
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 9 in
    Interior Color Desert, Milano
    Exterior Color Full Body Paint; Admiral Blue, Granite, Khaki, Magnetic, Merlot
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16"
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 2.0L I-4
    Chassis Mercedes Benz Sprinter
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Queen
    Torque 332 ft-lb
    Refrigerator Type 12V Two Door Compressor Driven
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED Smart TV, BR 32" LED Smart TV
    Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • isata 3 24FWSFX

    isata 3 24FWSFX Floorplan Image

    Dynamax isata 3 Freedom Edition Class C diesel motorhome 24FWSFX highlights: ... more about isata 3 24FWSFX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 6 ft 9 in
    Interior Color Desert, Milano
    Exterior Color Freedom Edition Light, Freedom Edition Dark
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 50 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16"
    Furnace BTU 20000 btu
    Fuel Type Diesel
    Engine 2.0L I-4
    Chassis Mercedes Benz Sprinter
    Horsepower 211 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Queen
    Torque 332 ft-lb
    Refrigerator Type 12V Two Door Compressor Driven
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    Water Heater Type Truma Combi D 6 E High Efficiency
    AC BTU 15000 btu
    TV Info LR 32" LED TV, BR 32" LED Smart TV
    Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • isata 3 24SSSFXM

    isata 3 24SSSFXM Floorplan Image

    Dynamax isata 3 Class C diesel motorhome Freedom Edition 24SSSFXM highlights: ... more about isata 3 24SSSFXM

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 5 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Interior Color Desert, Milano
    Exterior Color Freedom Edition Light, Freedom Edition Dark
    Hitch Weight 5000 lbs
    GVWR 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size LT215/85 R16
    Furnace BTU 20000 btu
    Fuel Type Diesel
    Engine 2.0L I-4
    Chassis Mercedes-Benz Sprinter
    Horsepower 211 hp
    Fuel Capacity 24 gals
    Wheelbase 170 in
    Available Beds Murphy
    Torque 332 ft-lb
    Refrigerator Type 12V Two Door Compressor Driven
    Refrigerator Size 8 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    Water Heater Type Truma Combi D 6 E High Efficiency
    AC BTU 15000 btu
    Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

isata 3 Features:

Standard Features (2025)



Chassis

  • Mercedes-Benz® Sprinter Chassis (11,030-lbs. GVWR / 15,250-lbs. GCWR)
  • 2.0L I4 Turbo Diesel Engine (211 hp / 332 lb-ft. of Torque)
  • 9G-TRONIC PLUS Automatic Transmission with Overdrive
  • 26.4-Gallon Fuel Tank
  • 5.75-Gallon Diesel Exhaust Fluid Tank
  • Lane Keep Assist
  • Adaptive Cruise Control
  • Active Brake Assist
  • High-Beam Assist
  • Crosswind Assist
  • Attention Assist
  • Traffic Sign Assist
  • Rescue Assist
  • Electronic Stability Program (ESP)
  • Wet Wiper System
  • Trailer Hitch (5,000 Tow lbs. / 500 Tongue lbs.) with 7-Way Round Tow Connection
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Single 12V Chassis Battery
  • 250-Amp Alternator
  • LED Brake, Turn, and Backup Lights
  • Fog Lights
  • Aluminum Running Boards
  • Bilstein® Gas-Charged Rear Shock Absorbers
  • Aluminum Wheels (Set of Four) with Metal Valve Extensions
  • Front and Rear Tires: LT215/85 R16
  • Single Front Wheels and Dual Rear Wheels (5.5" x 16")
  • Aluminum Wheels (Set of Four) with Valve Extensions
  • 4.727 Rear Axle Ratio
  • Power, Heated Leatherette Cab Seats with Swivel Bases
  • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)

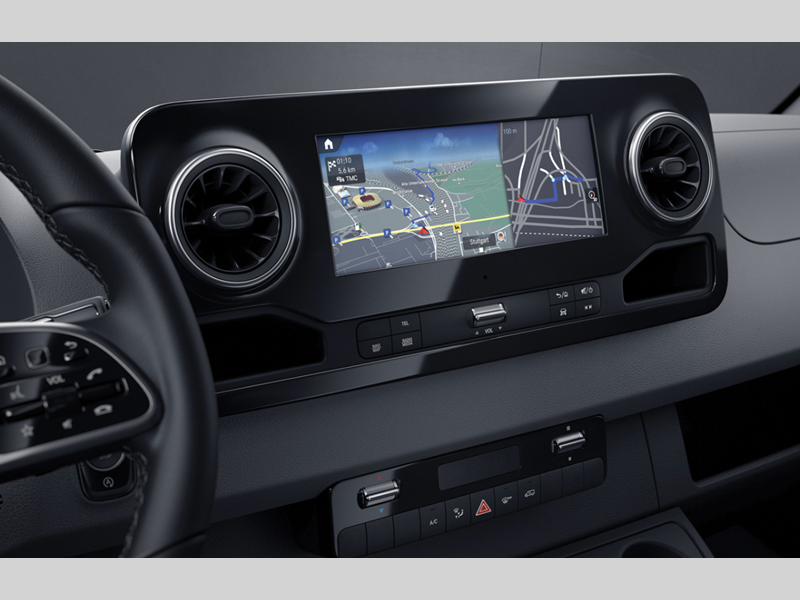

  • MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
  • 12V and USB-C Accessory Ports
  • Wireless Smartphone Charging Tray
  • Instrument Cluster with Color Display
  • Multifunction Steering Wheel
  • Adjustable Steering Column
  • Power Windows and Locks
  • Power Exterior Mirrors (Auto-Heated at Low Temperatures)
  • 3-Point Seat Belts
  • Front, Thorax, & Window Safety Air Bags
  • Deluxe, Removable Automotive Cab Carpet Mat
  • Drink Holders

Construction

  • 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Composite Exterior Fiberglass (No Exterior Wood)
  • Aluminum-Framed Floor
  • Composite Flooring Substrate (Lightweight & Moisture-Resistant)
  • Aluminum-Framed Roof Trusses
  • Crowned, One-Piece Fiberglass Roof
  • Fiberglass Rear Bumper
  • Foil-Lined Ductwork Throughout
  • Aerodynamic Fiberglass Front Wing Panels
  • Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth® Smart Phone App Control
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Locking Aluminum Exterior Storage Doors with Compression Latches
  • Electric Slide System

Exterior

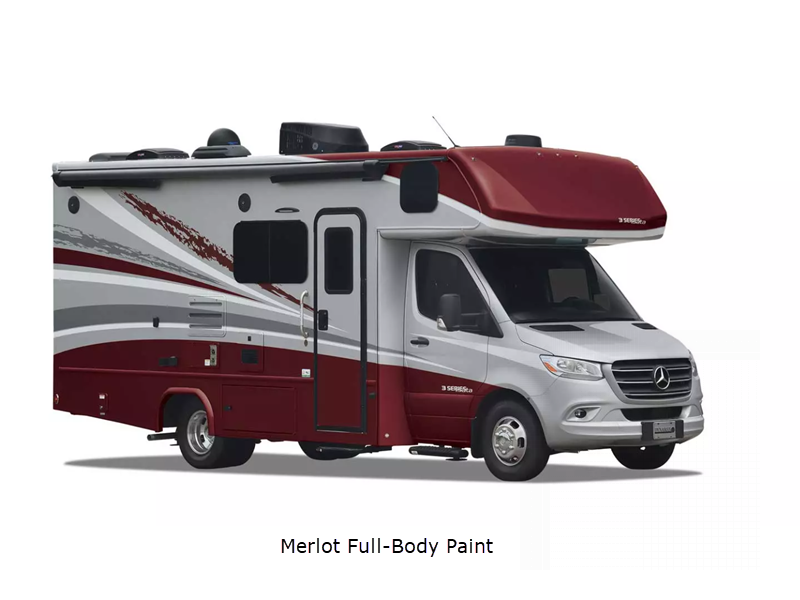

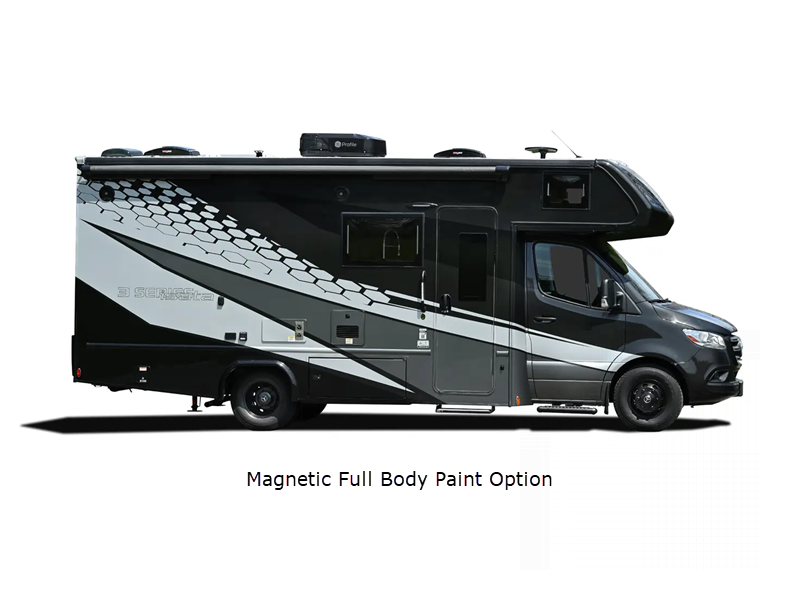

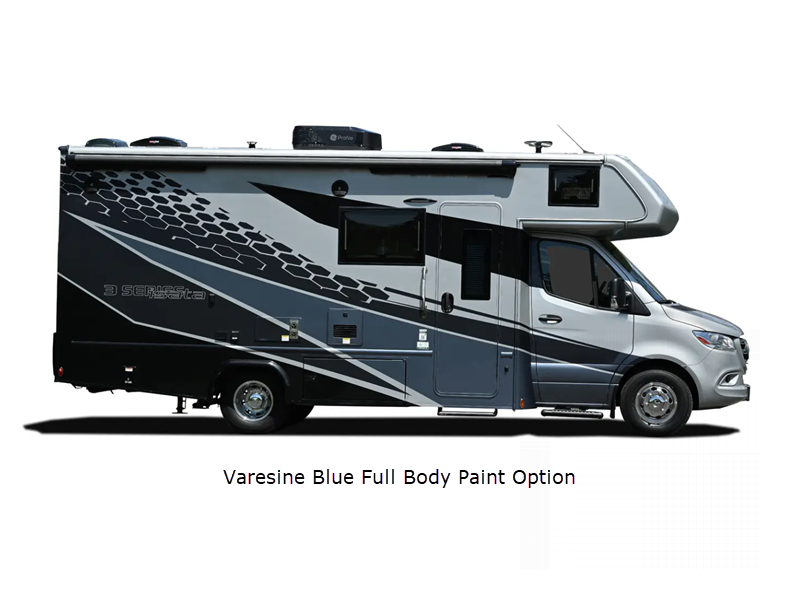

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection
  • Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • Slideout Topper(s)
  • LED Patio Light
  • Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
  • Lighted Acrylic Entry Grab Handle
  • Power Entry Step with Upgraded SeaDek® Step Tread
  • Exterior TV Mount
  • Exterior Speakers
  • Front and Rear LED Clearance and Marker Lighting

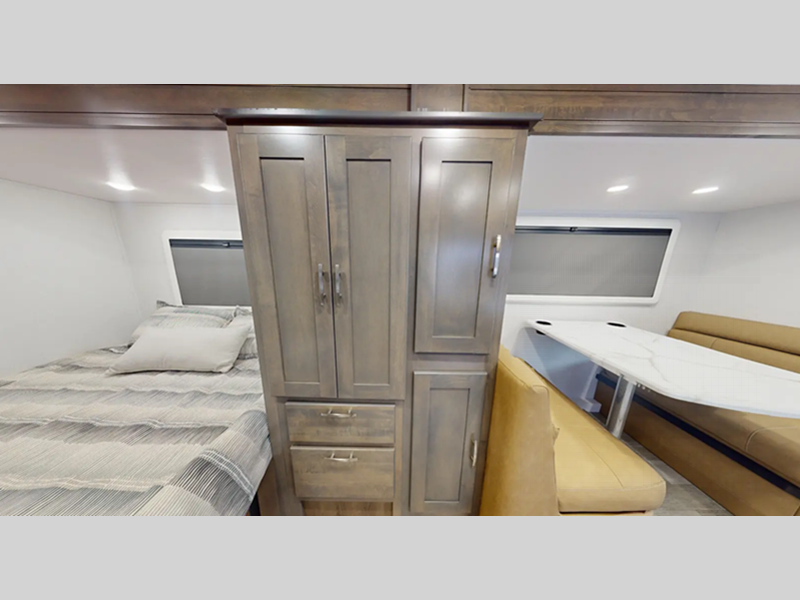

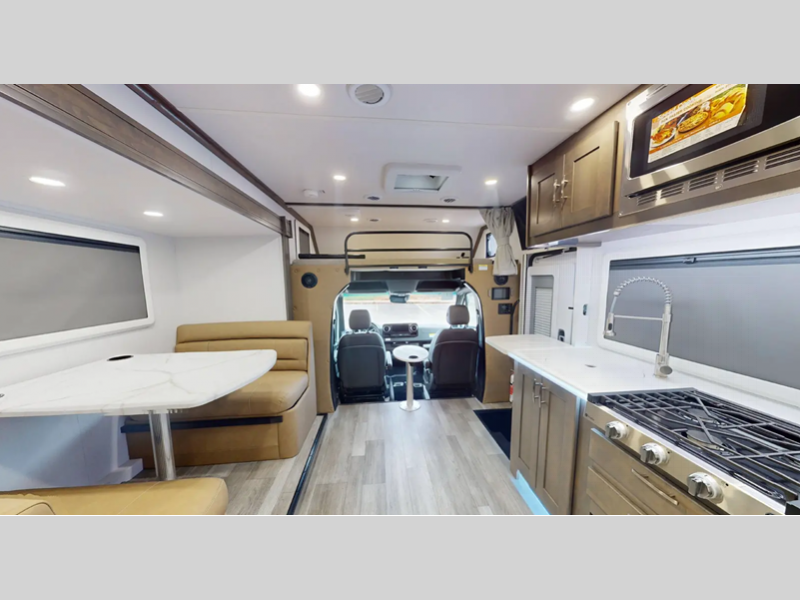

Interior

  • Premium Vinyl Flooring Throughout
  • Soft-Touch Padded Vinyl Ceiling
  • LED Ceiling Lighting

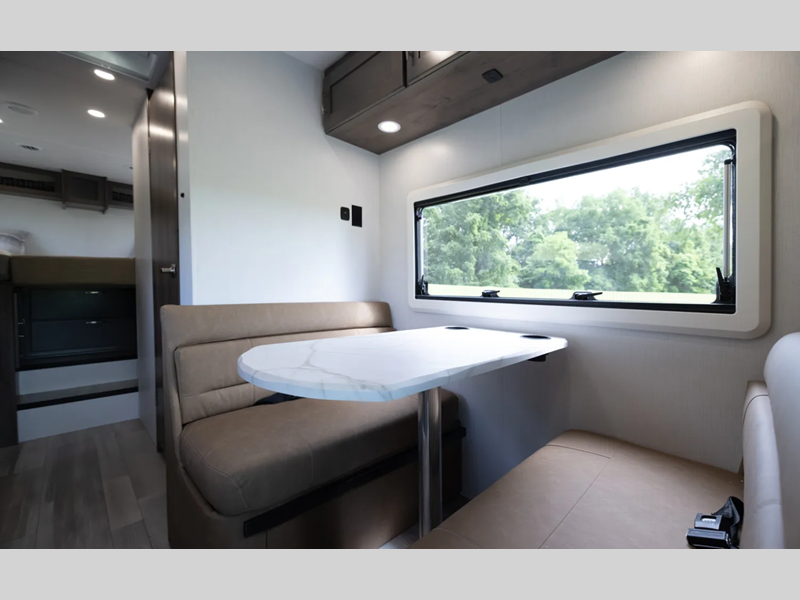

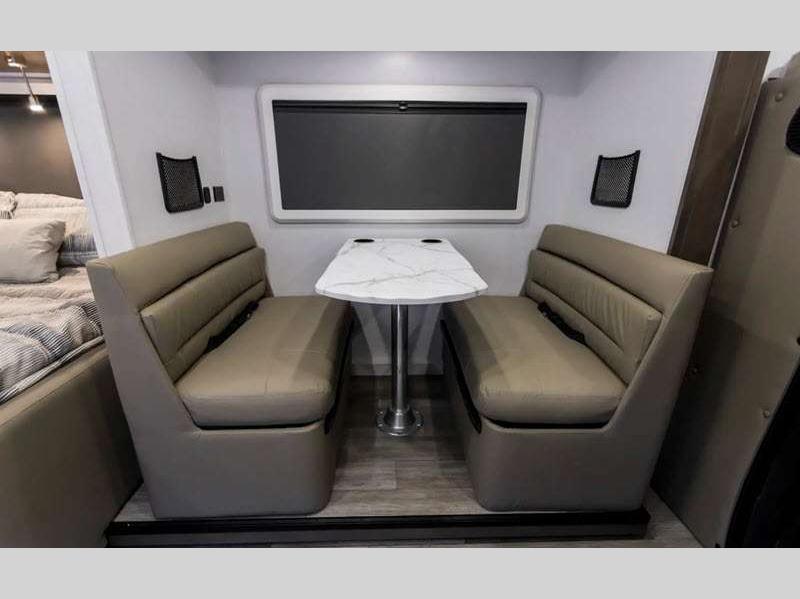

  • Sprung, Residential-Style Dinette Seats with Lift Up Storage
  • Coordinating Window Treatments
  • Blackout Roller Shades (Steel Blind at Kitchen Window)
  • Hardwood Craftsman-Style Cabinetry

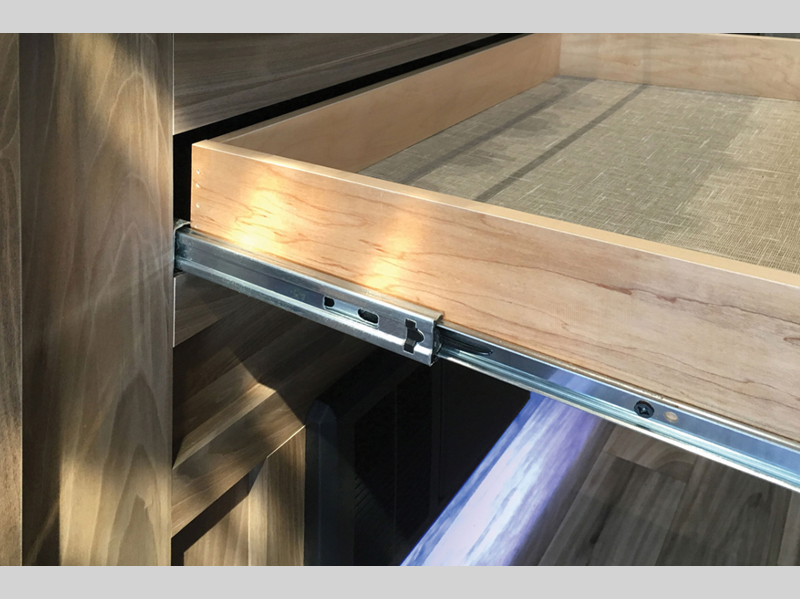

  • Full Extension, Soft-Closing Drawer Guides (where applicable)
  • Hidden Hinges
  • 32" LED Smart TV (Living Area)
  • Stereo System - AM/FM with Zoned Speaker Control and Bluetooth® Smart Phone App Control
  • Easy Access Battery Compartment Beneath Entry Step
  • Entry with Non-Skid Rubber Step and Steel Risers
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports
  • Cocktail Table Between Cab Seats
  • Cab Seat Booster Cushions (Set of Two)

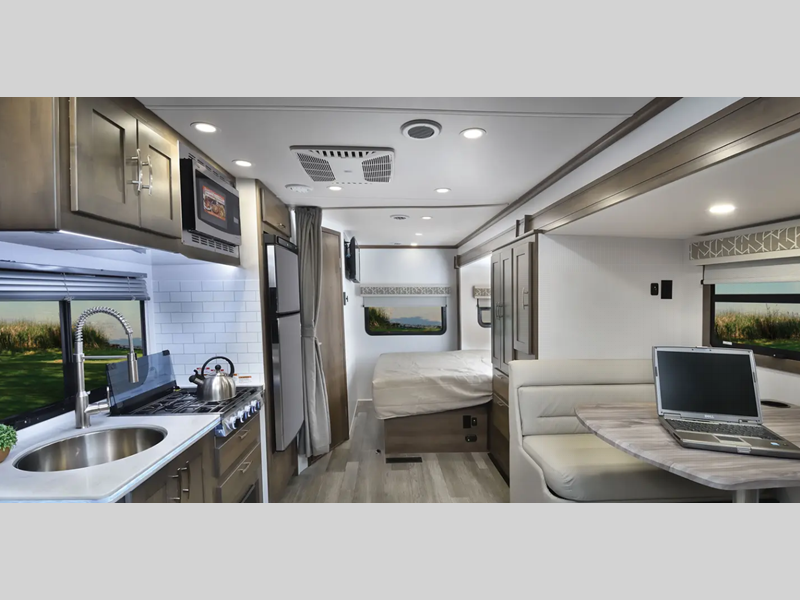

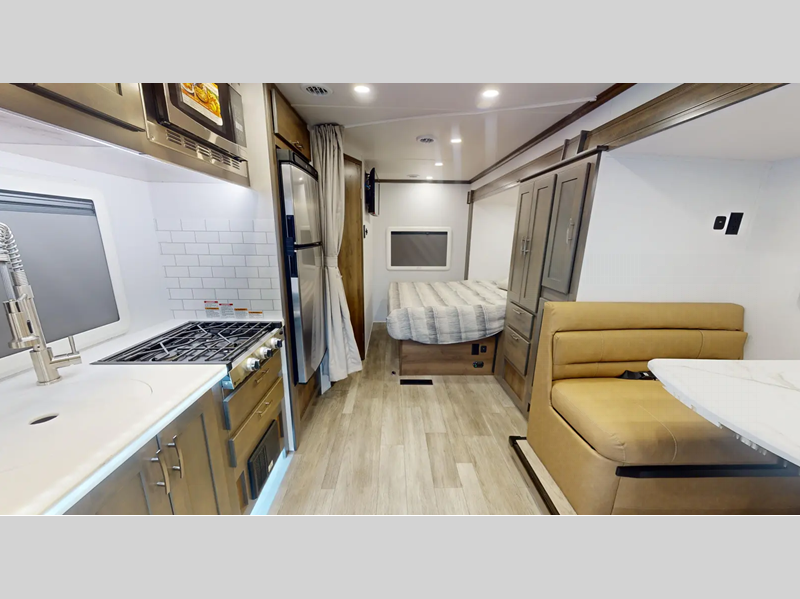

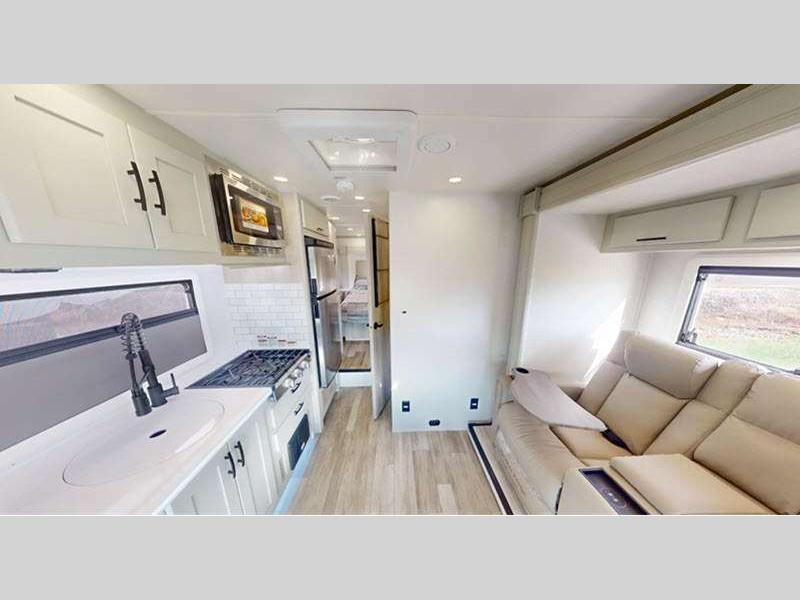

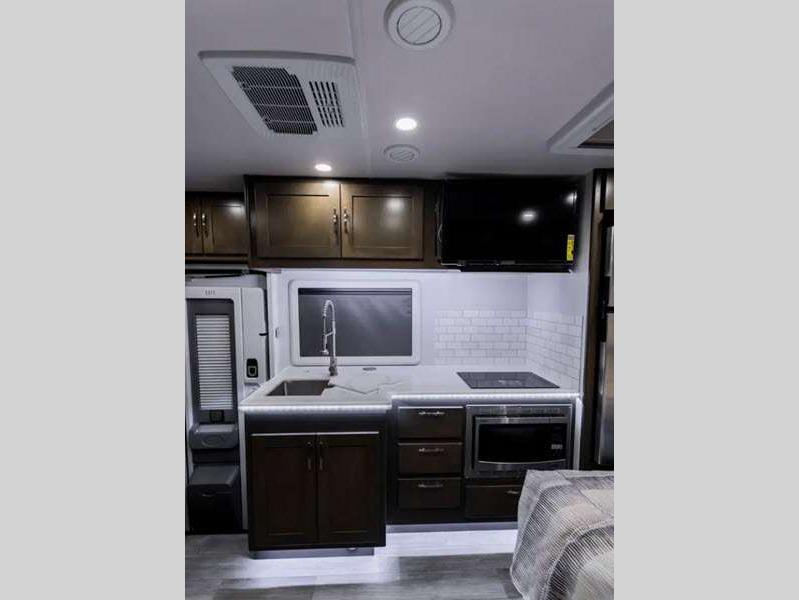

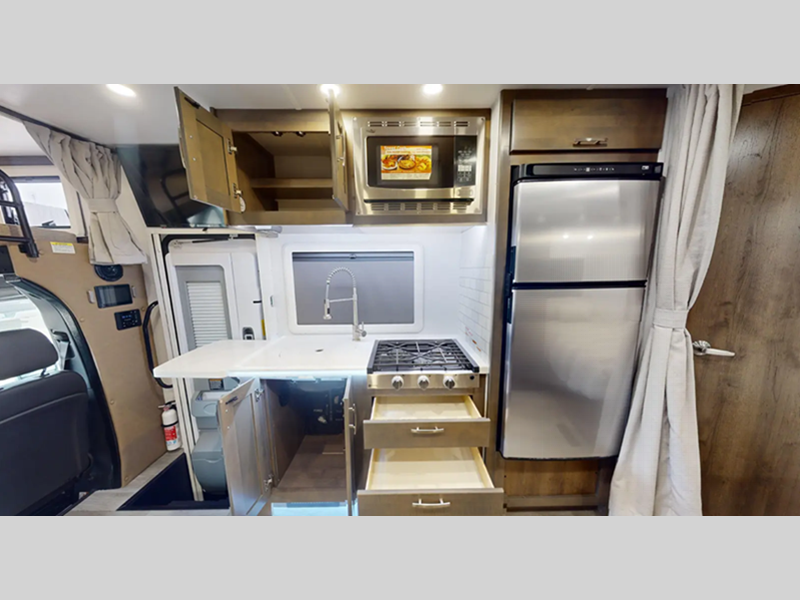

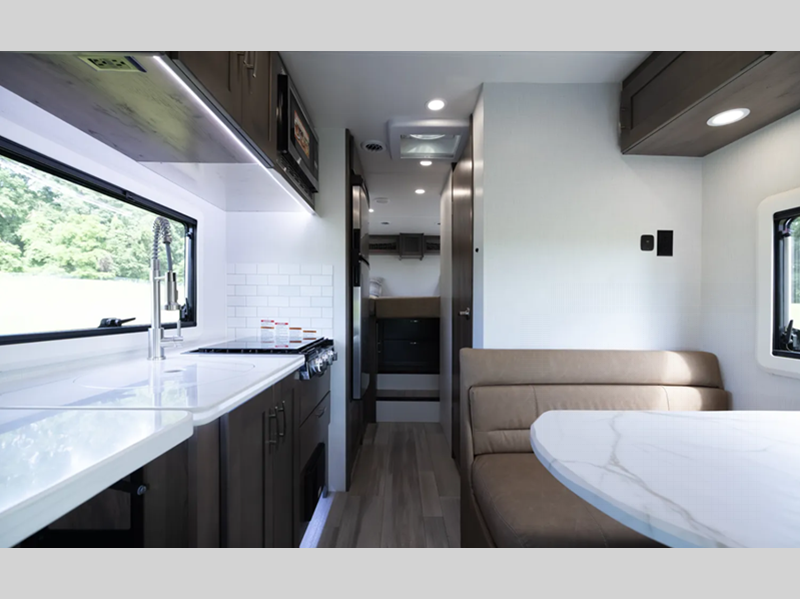

Kitchen

  • 12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator

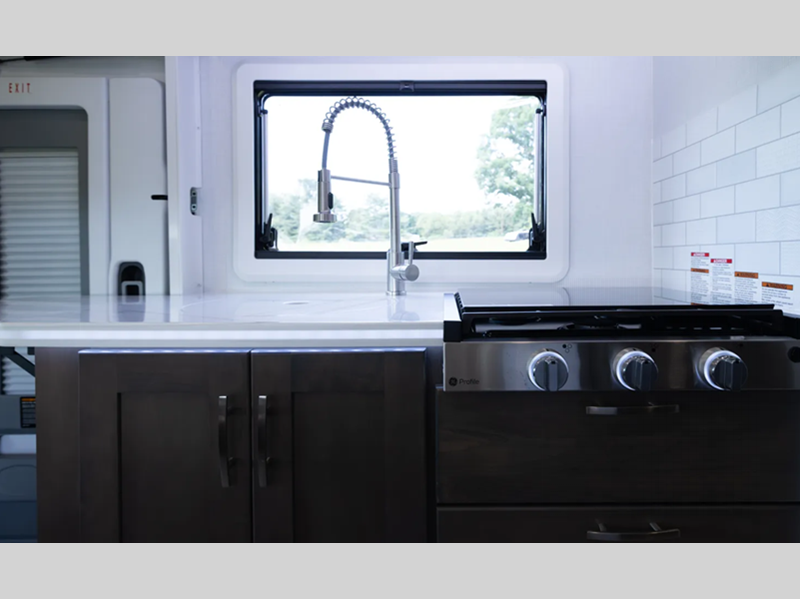

  • Gas Range with Glass Cover and Overhead Range Cover
  • Convection Microwave Oven
  • Solid Surface Countertops with LED Edge Lighting and Backsplash
  • Solid Surface Countertop Extension
  • Stainless Steel Sink with Solid Surface Cover
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Overhead Cabinet Accent Lighting
  • Under-Cabinet Lighting
  • MaxxAir® Power Vent with Built-In Rain Cover

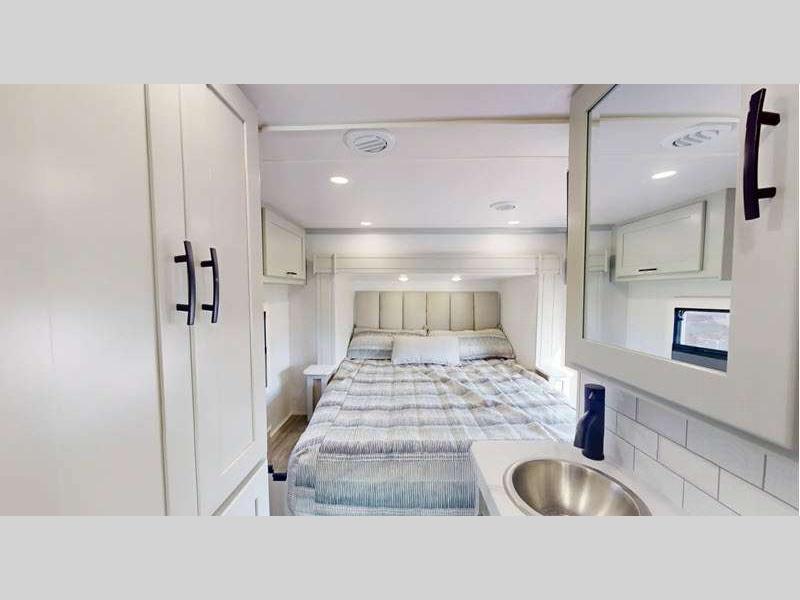

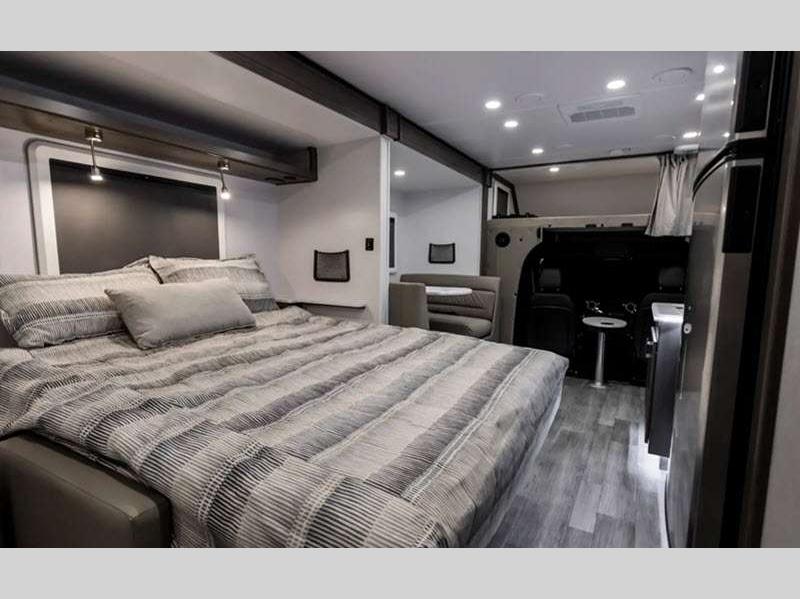

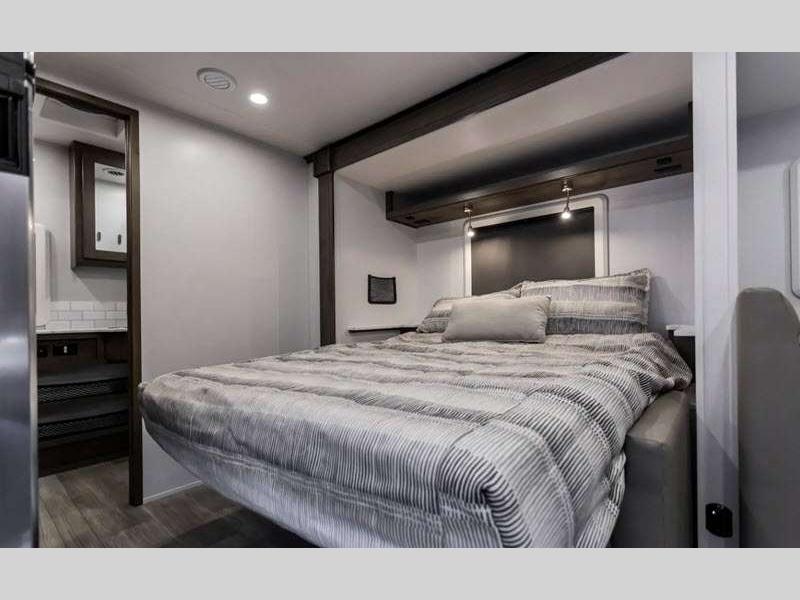

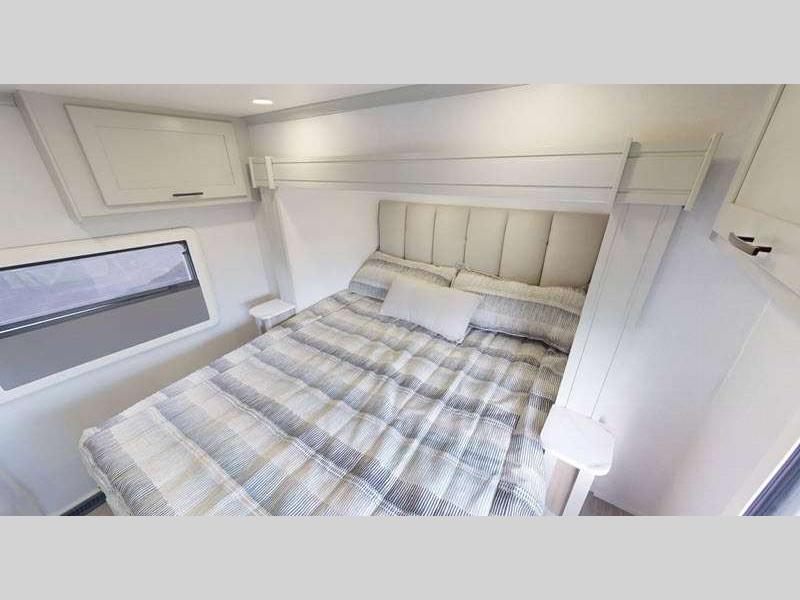

Bedroom

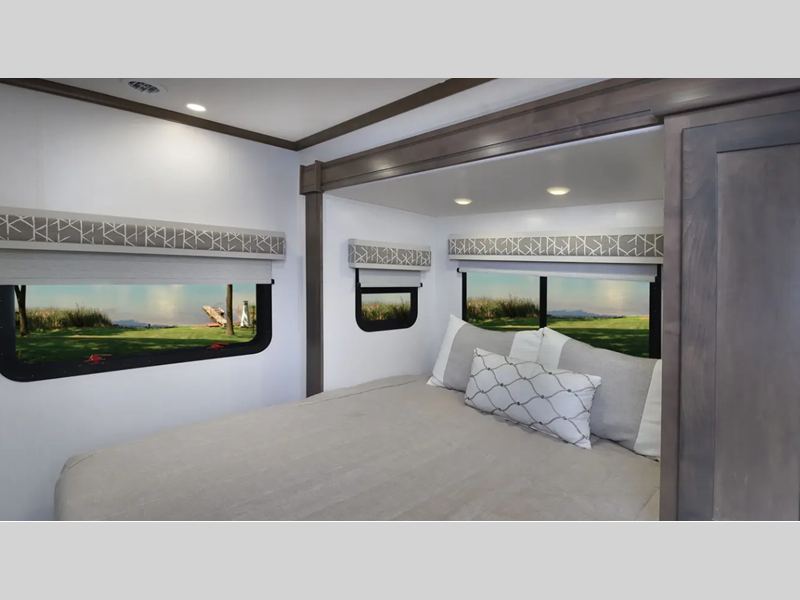

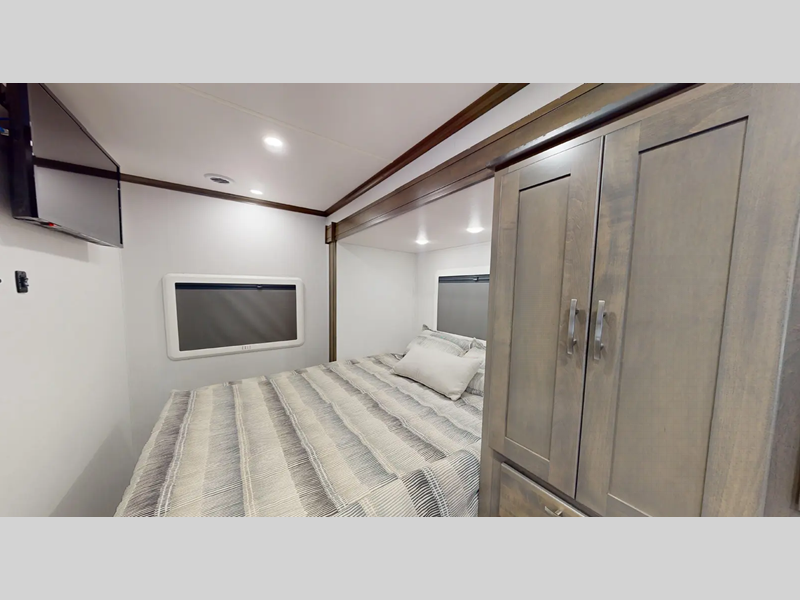

  • Queen Bed (60"x75") with Gel-Infused Memory Foam Mattress
  • Under-Bed Storage (24FW)
  • Deluxe Padded Headboard (24RW)
  • Designer Bedding Package
  • 32" LED Smart TV (N/A 24SSSFX)
  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports
  • Privacy Partition

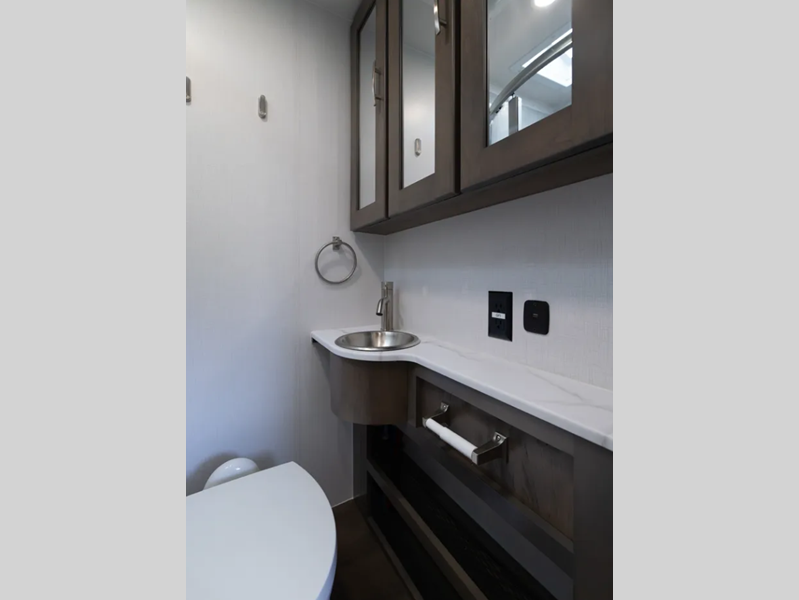

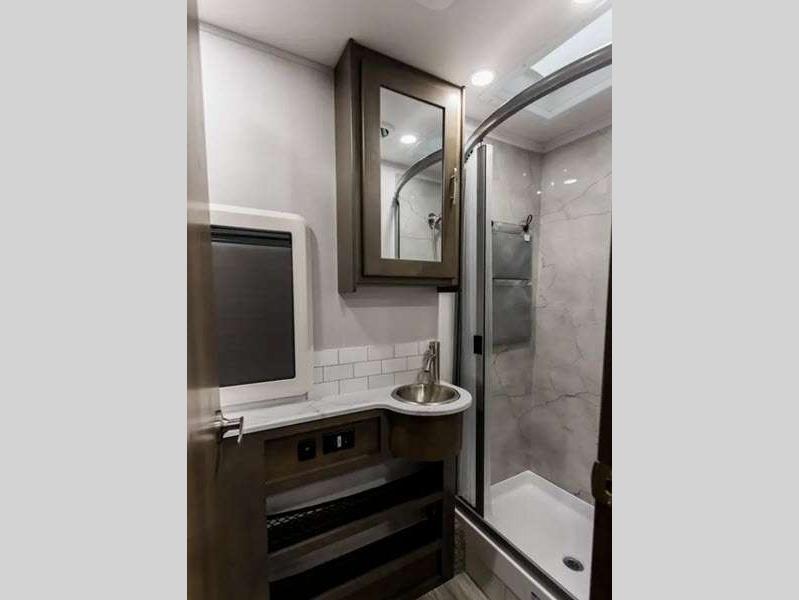

Bathroom

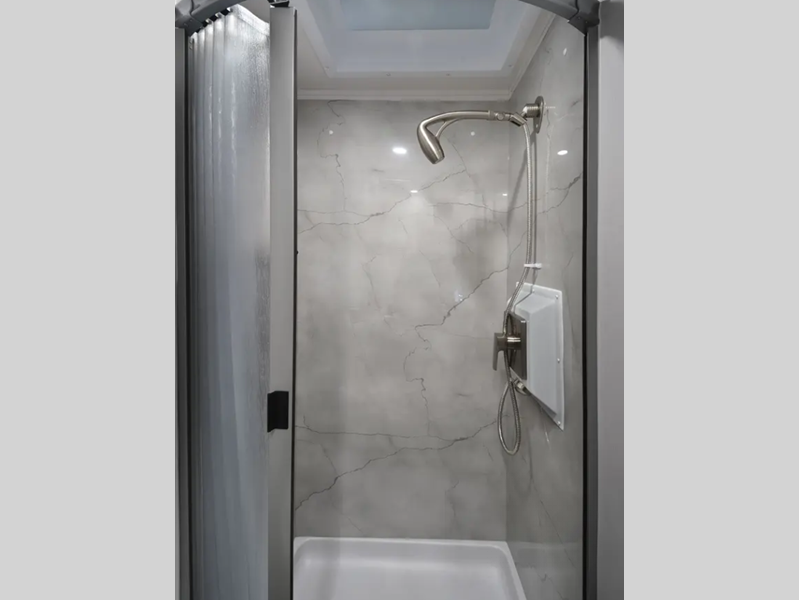

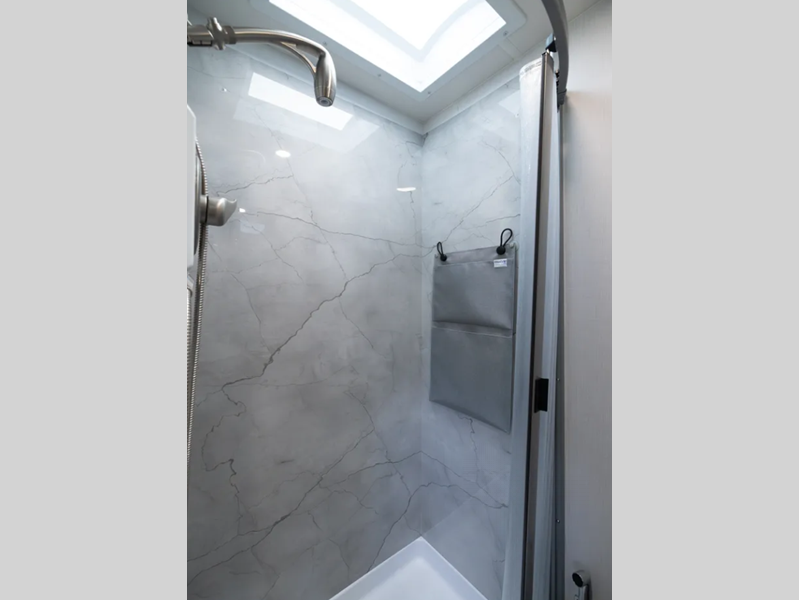

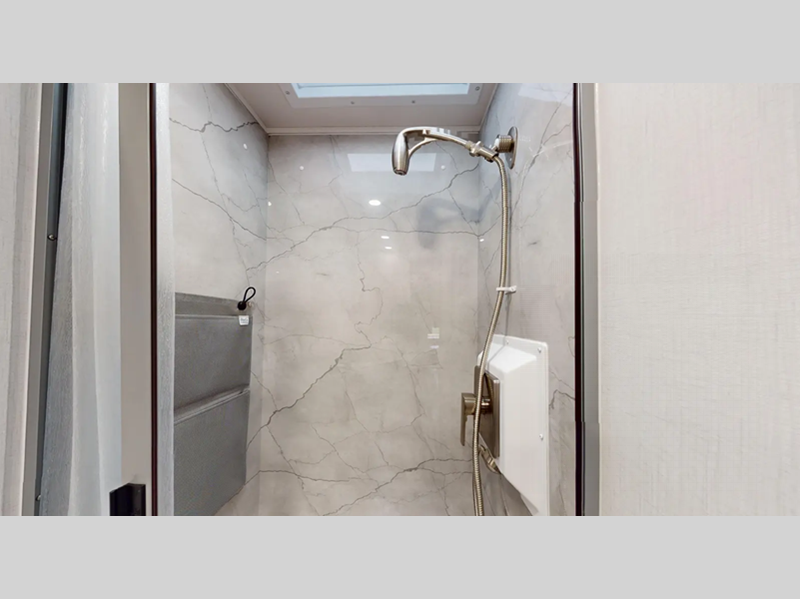

  • Shower with Light-Weight, Soft-Sided Shower Door and Skylight
  • Oxygenics Body Spa® RV Shower Head
  • Stainless Steel Sink with Residential Faucet
  • Composite Foot-Flush Toilet with Hand Sprayer
  • MaxxAir® Power Vent with Built-In Rain Cover

Utilities

  • Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)

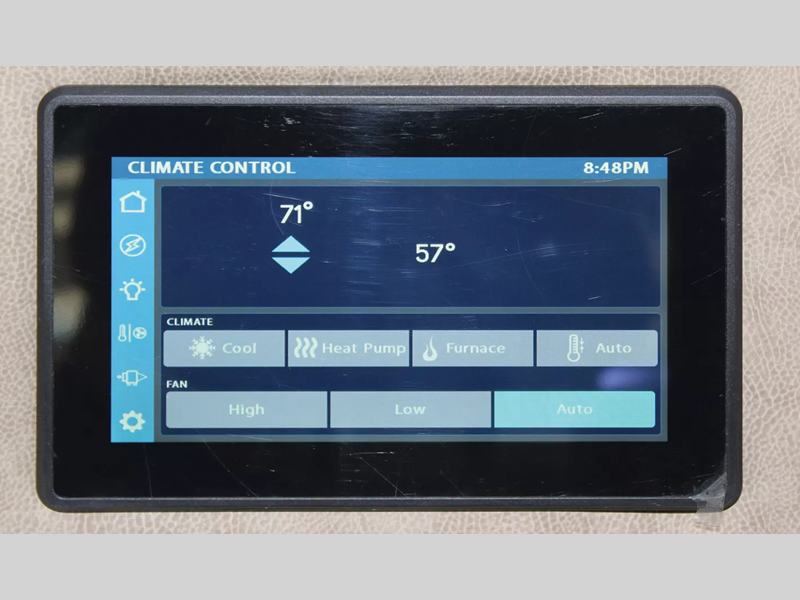

  • Firefly® Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect at Entry
  • 30-Amp Service
  • 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
  • 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
  • Automatic Generator Start

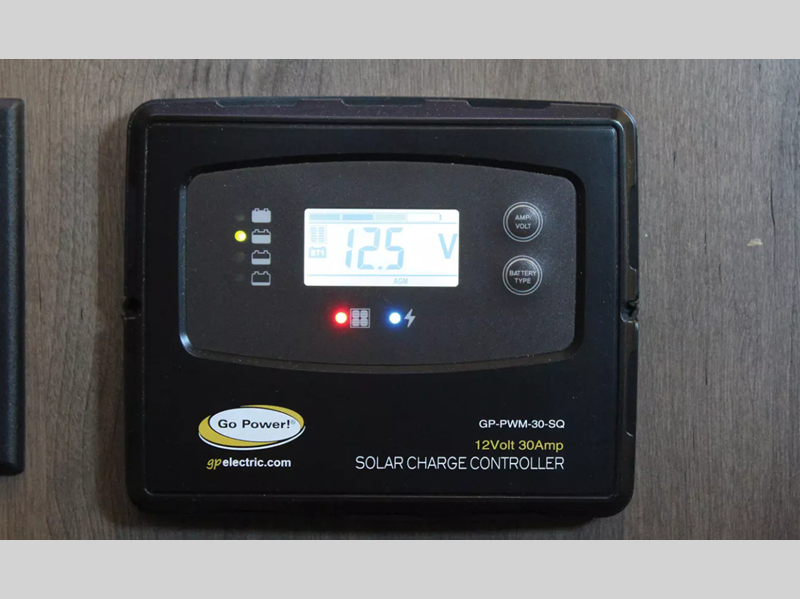

  • Solar Panel - Single 190 Watt with 30 Amp Controller
  • Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
  • 20,000-BTU Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Exterior GFCI Receptacle
  • Winegard® AIR 360+™ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
  • 4x4 HDMI Matrix
  • Cable TV/Satellite Hookup
  • 60-Amp Progressive Dynamics Converter with Charge Wizard® System
  • Black Tank Flush
  • SureLevel® Tank Level Monitoring System
  • 12V Heat Pads on Fresh, Gray, and Black Tanks
  • Water Management Valve for Fill and Winterizing
  • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

Options

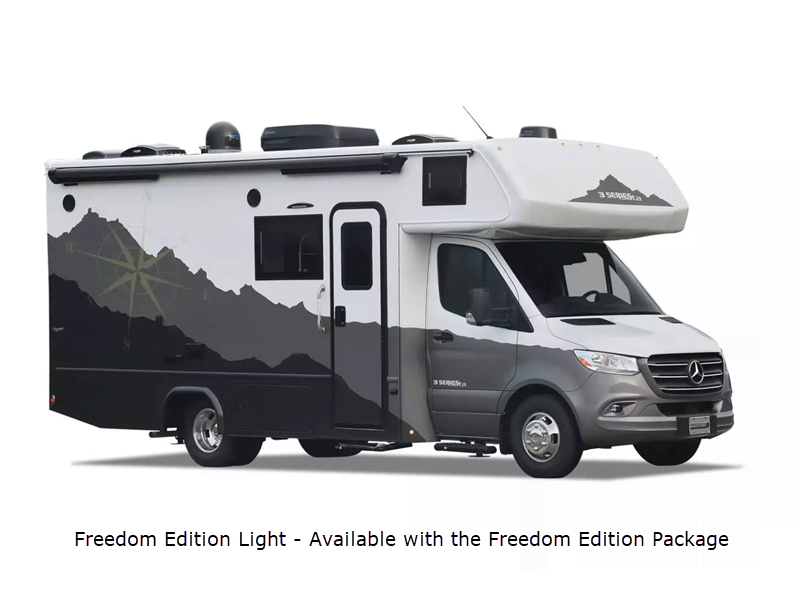

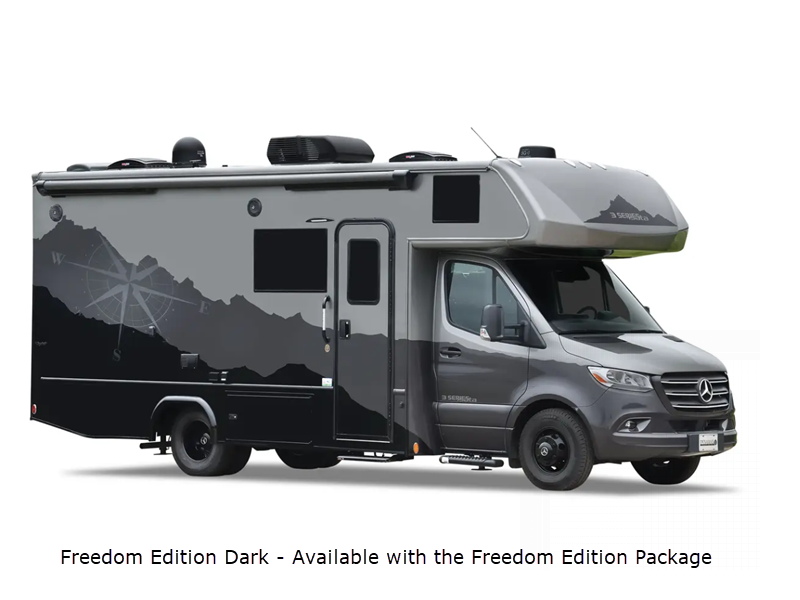

  • Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
  • Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out End Wall Windows)
  • Insulated Cab Curtain
  • Additional 280-Amp Alternator
  • Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
  • Delete 20.3-Gallon LP Tank
  • Two Low-Temp Lithium House Batteries (620AH Total)
  • Three 190W (570W Total) Solar Panels with 30-Amp Controller
  • 3,000W Pure Sine Wave Inverter/Charger
  • 20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
  • 2-Burner Induction Range
  • 50-Gallon Fresh Water Tank Relocated in Bed Base (24FWSFXM Only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Dynamax

At Dynamax, legendary product integrity and customer loyalty have combined to build a powerful brand. Now, a new generation of RVs are coming of age – delivering the best of both worlds – casual, easy living interiors with fresh décor options designed to maximize comfort and value.



We work hard to provide the most enjoyable ownership experience in the industry. Through our dedicated on-site service department we are able to provide incredible value and successfully cultivate wonderful relationships with our owners.



At Dynamax, reaching a higher standard is not an option, it’s a tradition. When you take our higher standards of safety, quality, and reliability and then back them up with our industry-leading warranty & customer service, you get a very powerful combination. Just as in a home, an RV provides a number of opportunities for something to go wrong. While we work hard to assure that things do not go wrong, we make sure that our Warranty and Customer Service Support is there to take care of you if something does!

Dynamax is stronger than ever as part of Forest River, Inc. You can have confidence that we will be around to make your ownership worry free for a long time to come.



At Dynamax, our passion for providing quality RVs with exceptional value has resulted in legendary product integrity and customer loyalty. Our innovative engineers utilize our state-of-the-art facilities to create products that maximize the comforts & features you desire – all backed by the trusted Dynamax name.



We understand that the recipe for success is attention to detail. So, we pride ourselves in our innovative and “customer friendly” products. We enjoy incredible customer loyalty because our ears are always open to the product input of our Dynamax product owners. Through these efforts, we are able to design reliability and functionality into every RV we build.
